Check AGS Connection on Dodge

July 20, 2022

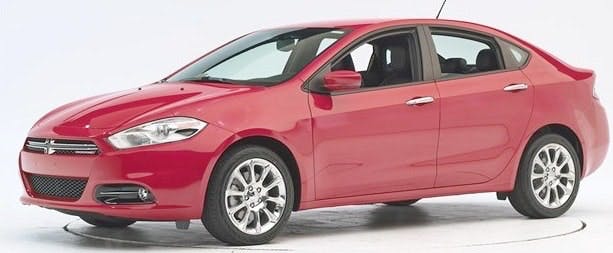

This bulletin applies to 2013-2015 Dodge Dart and 1500 pickup vehicles equipped with an active grille shutter (AGS).

65b85b8509d562001e0d20d1 Dodgedartagstsb

This bulletin applies to 2013-2015 Dodge Dart and 1500 pickup vehicles equipped with an active grille shutter (AGS).

The MIL may be on, with DTC U11E9 stored after fascia removal. The AGS electrical harness connector may not be properly connected. Code U11E9 indicates lost communication with AGS if the vehicle is started with the AGS electrical harness disconnected. Confirm that the harness is connected properly and clear any DTCs.

About the Author

Information courtesy of Mitchell 1

Information for Technical Service Bulletins comes from ProDemand, Mitchell 1's auto repair information software for domestic and import vehicles. Headquartered in San Diego, Mitchell 1 has provided quality repair information solutions to the automotive industry since 1918.
