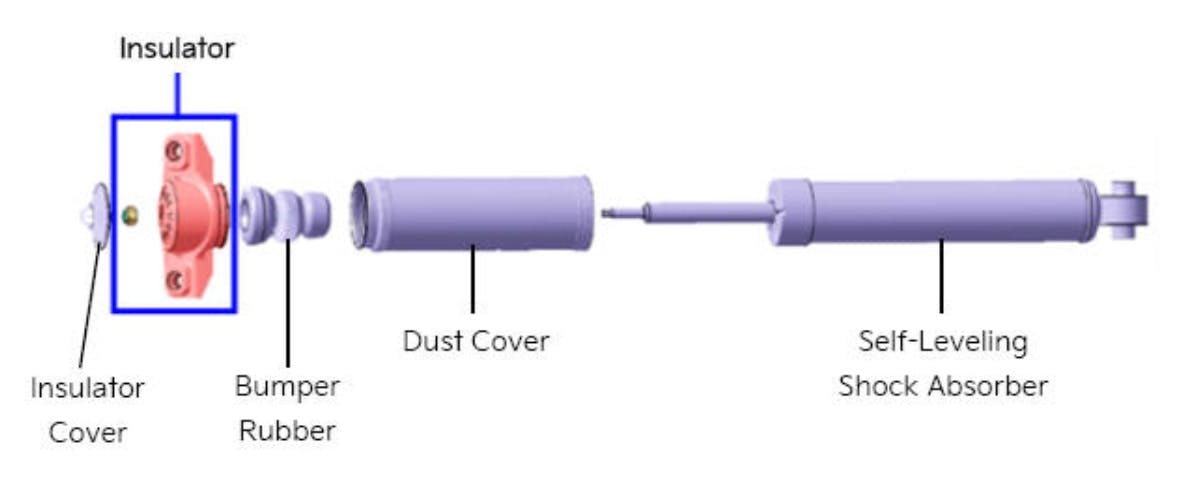

An updated isolator kit must be installed with the replacement shocks.
Photo courtesy of Mitchell 1
Bolts must be tightened to torque spec as follows: Bolts C...72.3-86.8 ft.-lb.; bolt/nut D...101-115.7 ft.-lb.
This bulletin applies to 2020-2021 Kia Telluride vehicles built from Jan. 1, 2019, through Dec. 1, 2020.
Noise from the rear of the vehicle may be heard when driving over bumps or a bumpy road. Replacement of the rear self-leveling shocks may be necessary using the new insulator assembly kit.
Replace both rear shocks using the new isolators and self-locking nuts provided in the kit P/N 55310 S1150FFF.
