Replacing BMW stabilizer link

July 1, 2024

This bulletin applies to 2020 BMW X2 Sports Activity Group, 2 Series Gran Coupe and X1 Sports Activity Vehicle models.

Related To: Mitchell 1

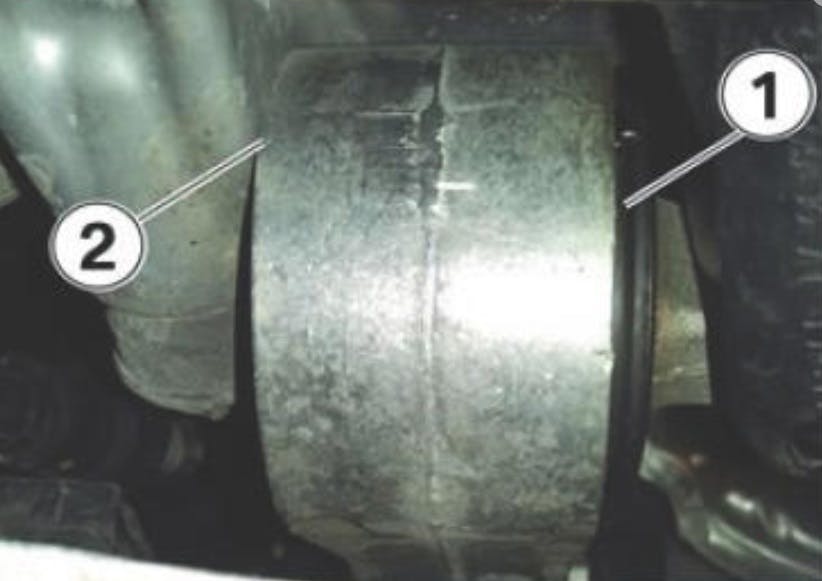

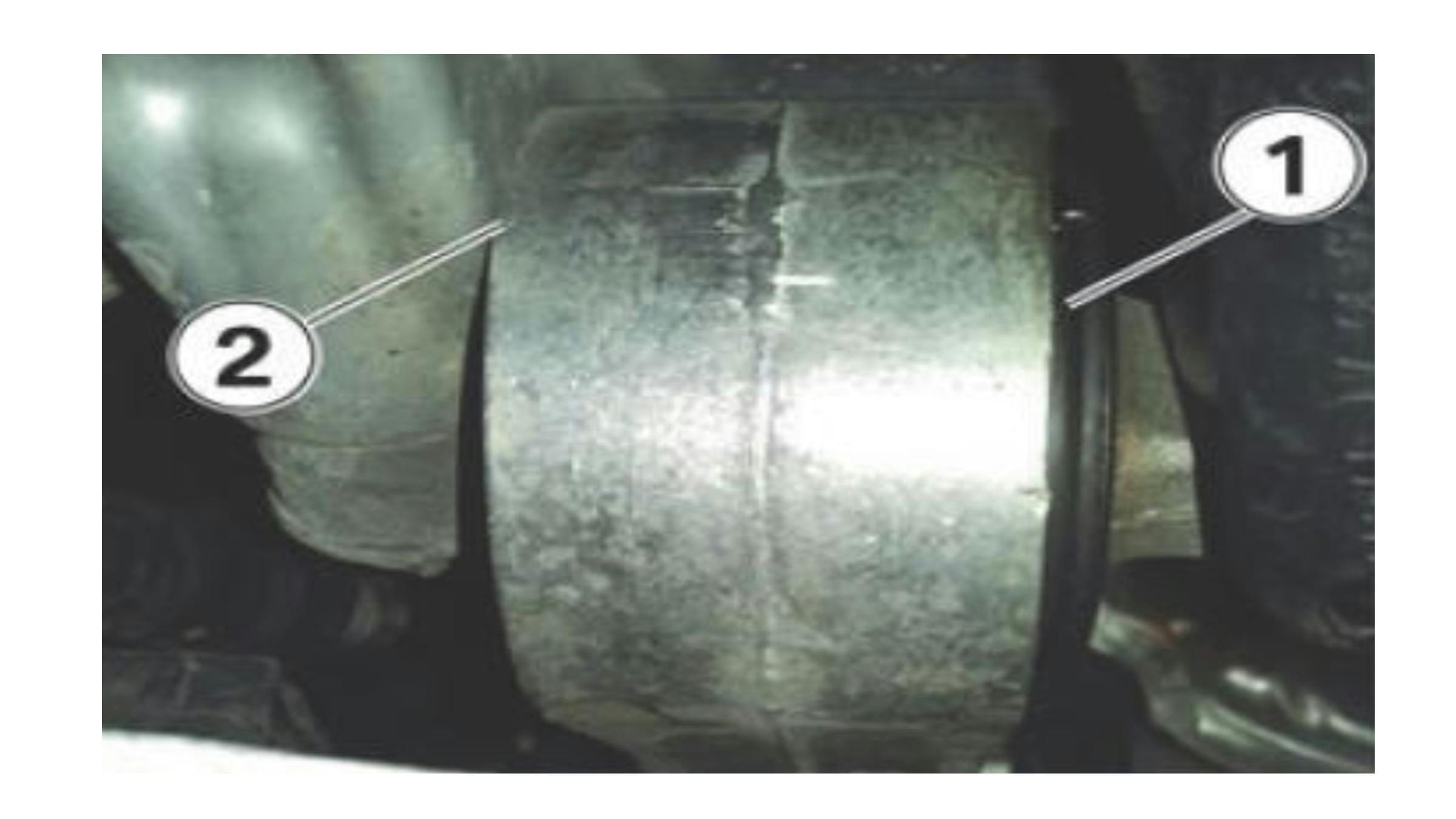

If the link bushing is working its way out, the aluminum link housing (1) may start to rub against the oil pan (2).

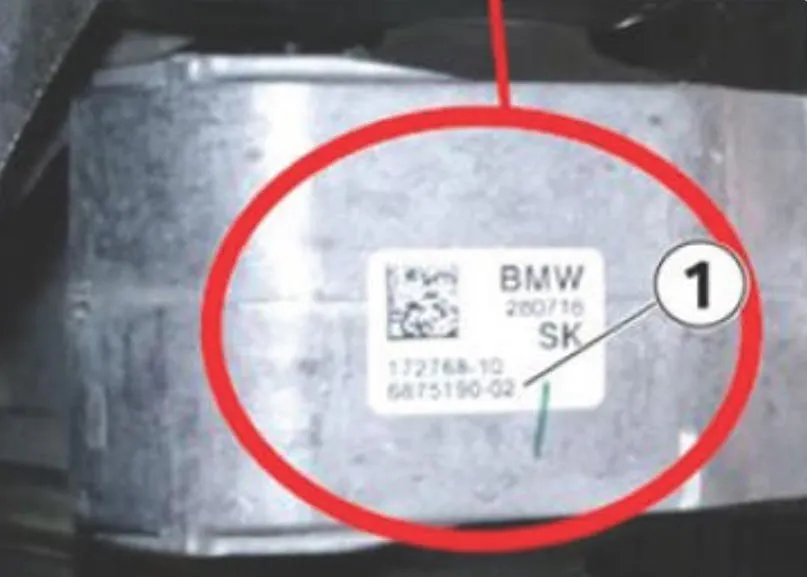

Refer to the link label. The last two numbers, as pointed out here, need to be 02 or higher on the replacement stabilizer link.

This bulletin applies to 2020 BMW X2 Sports Activity Group, 2 Series Gran Coupe and X1 Sports Activity Vehicle models.

During load reversal or taking off from a stop, a creaking or droning noise may be heard from the lower engine area. The bushing in the lower engine stabilizer link is likely working its way out of its aluminum housing. The aluminum housing starts to rub against the engine oil pan.

If this is confirmed, replace the stabilizer link. Note: the replacement stabilizer link needs to be Index 02 or higher (see the last two numbers on the part label).
