Examine Toyota Exhaust Pipe Separation

    April 24, 2023
    This bulletin applies to 2007-2016 Toyota Tundra trucks equipped with the split rear dual exhaust system (SET). The exhaust pipe may become loose due to the rubber isolator separating from the bracket.
    Photo: Mitchell 1

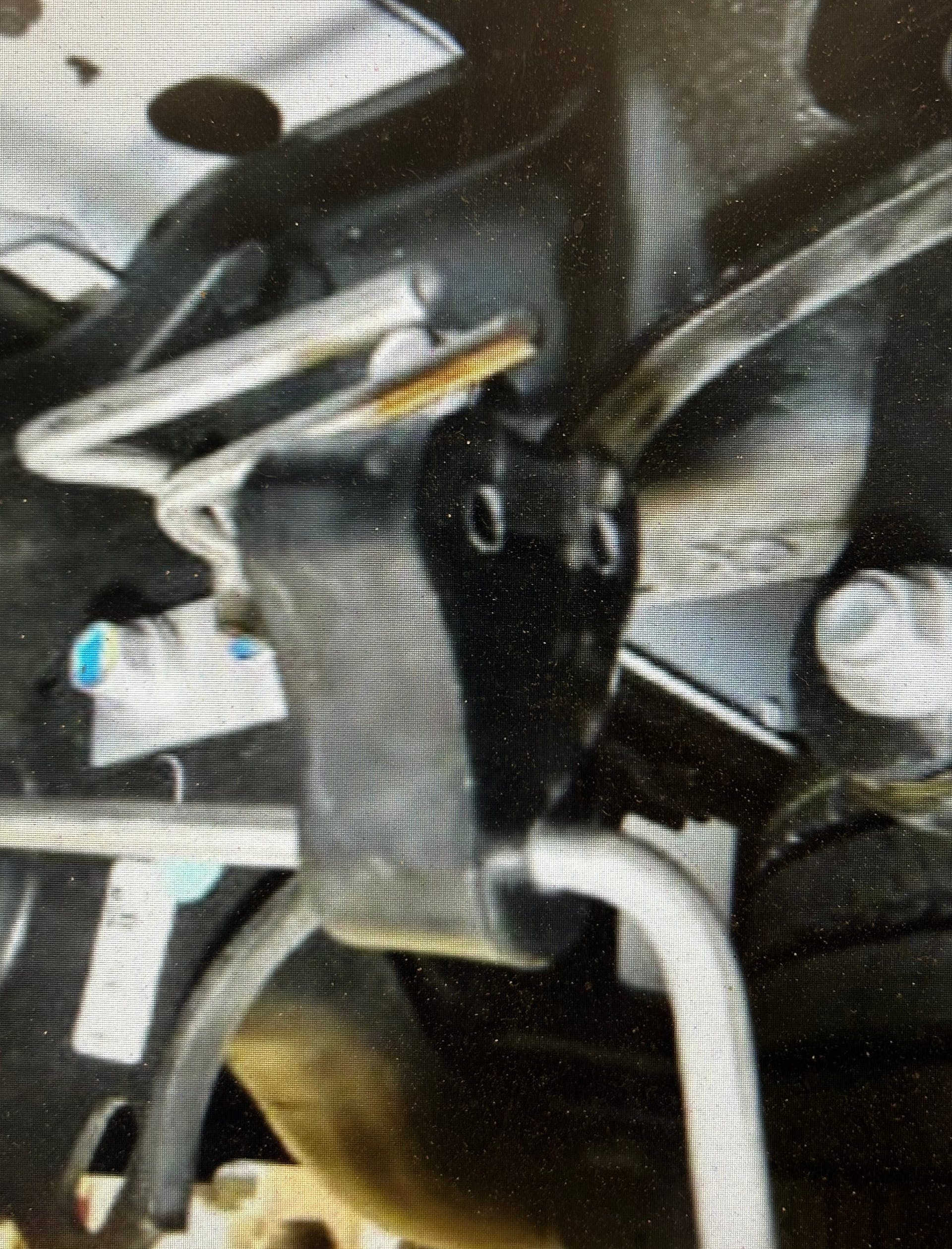

    Example of rubber isolator separated from the hanger. Note the smooth hanger legs.
    Example of rubber isolator separated from the hanger. Note the smooth hanger legs.

    This bulletin applies to 2007-2016 Toyota Tundra trucks equipped with the split rear dual exhaust system (SET). The exhaust pipe may become loose due to the rubber isolator separating from the bracket. This will allow the exhaust pipe to come into contact with the frame or suspension, causing a rattle noise.

    An updated rear exhaust hanger bracket is now available to maintain the correct alignment of the hanger and rubber isolator. The improved hanger is available as P/N 00016-34739-01 (right and left).

    About the Author

    Information courtesy of Mitchell 1

    Information for Technical Service Bulletins comes from ProDemand, Mitchell 1's auto repair information software for domestic and import vehicles. Headquartered in San Diego, Mitchell 1 has provided quality repair information solutions to the automotive industry since 1918.
