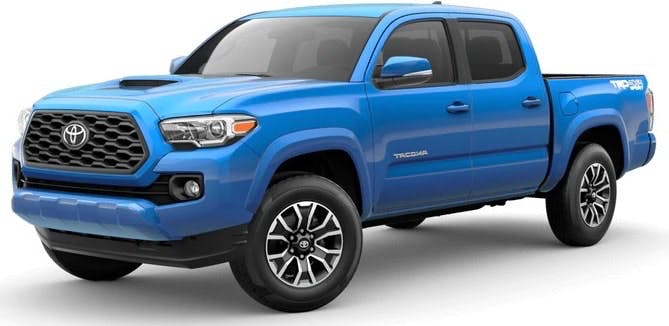

Toyota Tacoma Trucks May Have Incomplete Weld

Aug. 10, 2020
Some 2016-2019 Toyota Tacoma trucks equipped with a 2GR-FKS engine may exhibit a MIL on with DTC P013A00 and/or P013C00 (O2 slow response) due to an incomplete weld around the front exhaust pipe assembly (either bank).

Some 2016-2019 Toyota Tacoma trucks equipped with a 2GR-FKS engine may exhibit a MIL on with DTC P013A00 and/or P013C00 (O2 slow response) due to an incomplete weld around the front exhaust pipe assembly (either bank).

Inspect the front exhaust pipe for incomplete weld (exhaust leak) around the O2 sensor boss and flanges. If incomplete weld is found, replace the affected exhaust pipe and gaskets. Clear DTCs and test drive to confirm the repair.

DRIVE TYPE              PART NUMBER                      PART

2WD........................... 17450-0P350............................ Pipe assembly, front No. 2

4WD...........................17450-0P360..............................Pipe assembly, front No. 2

2WD / 4WD................17410-0P560...........................Pipe assembly, front

                                   90080-43036............................ exhaust pipe gasket

                                   17451-21030............................exhaust pipe gasket

                                   90917-A6005...........................exhaust pipe gasket, No. 2

About the Author

Information courtesy of Mitchell 1

Information for Technical Service Bulletins comes from ProDemand, Mitchell 1's auto repair information software for domestic and import vehicles. Headquartered in San Diego, Mitchell 1 has provided quality repair information solutions to the automotive industry since 1918.
