Check Ford CPP Switch for Damage

    March 22, 2023
    Some 2015-2017 Ford Mustang vehicles equipped with a manual transmission and built on or before June 15, 2016 may exhibit a no-crank condition due to the clutch pedal position (CPP) switch being damaged.
    Photo Credit: Mitchell 1

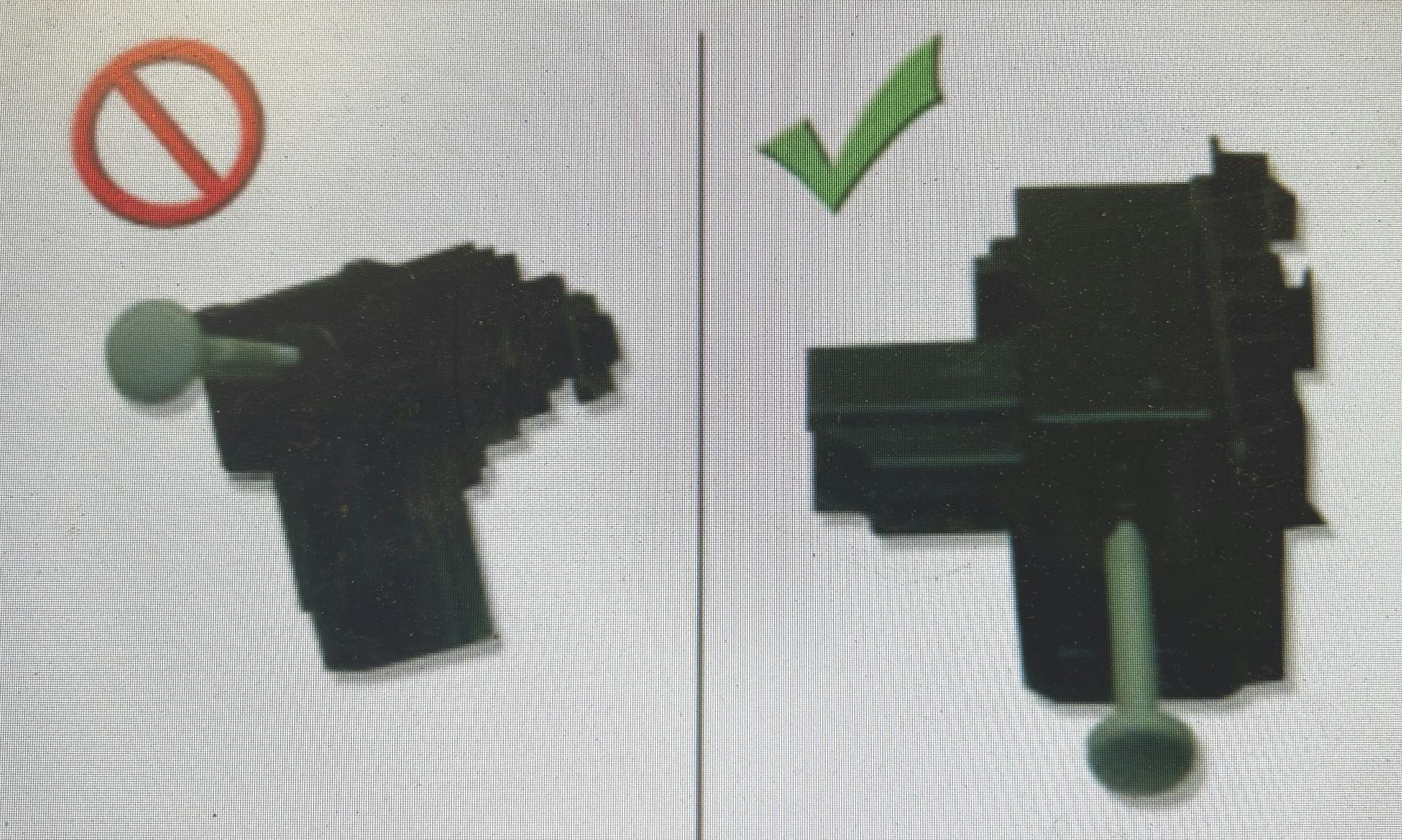

    At the left is a switch with an incorrect position. At the right is the correct switch position.
    At the left is a switch with an incorrect position. At the right is the correct switch position.

    Some 2015-2017 Ford Mustang vehicles equipped with a manual transmission and built on or before June 15, 2016 may exhibit a no-crank condition due to the clutch pedal position (CPP) switch being damaged. If the switch is damaged, install a new CPP and bracket.

    Refer to service manual section 303-14. The switch includes a plastic bracket rotating the connector 90-degrees.

    The correct switch is available as P/N HR3Z-11A152-A.

    About the Author

    Information courtesy of Mitchell 1

    Information for Technical Service Bulletins comes from ProDemand, Mitchell 1's auto repair information software for domestic and import vehicles. Headquartered in San Diego, Mitchell 1 has provided quality repair information solutions to the automotive industry since 1918.
