TSBs

Ford CPP Damage Causes No-Crank Condition

Jan. 11, 2023

Some 2015-2017 Ford Mustang vehicles equipped with a manual transmission and built on or before June 15, 2016 may exhibit a no-crank condition due to the CPP (clutch pedal position) switch being damaged.

Information courtesy of Mitchell 1

Mike Mavrigian

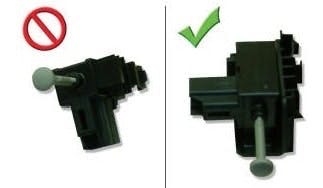

Previous switch (left) compare to the new, updated switch. The connector angle was changed to prevent switch damage.

If the CPP switch is damaged, install a new CPP switch and bracket, P/N HR3Z-11A152-A. The new switch includes a plastic bracket rotating the connector 90-degrees.
