Installing Link Harness to Jaguar

Dec. 11, 2023
This bulletin applies to 2013 Jaguar XF, XJ and XK vehicles. The engine may run rough with symptom 608000.

This bulletin applies to 2013 Jaguar XF, XJ and XK vehicles. The engine may run rough with symptom 608000.

A new VCT solenoid has been fitted to a 3.0L AJ126 or 5.0L AJ133 engine which requires a link harness in order to be installed on vehicles built with the prior part. The VCT solenoid design changed and the electrical connector on the VFT solenoid is a different size.

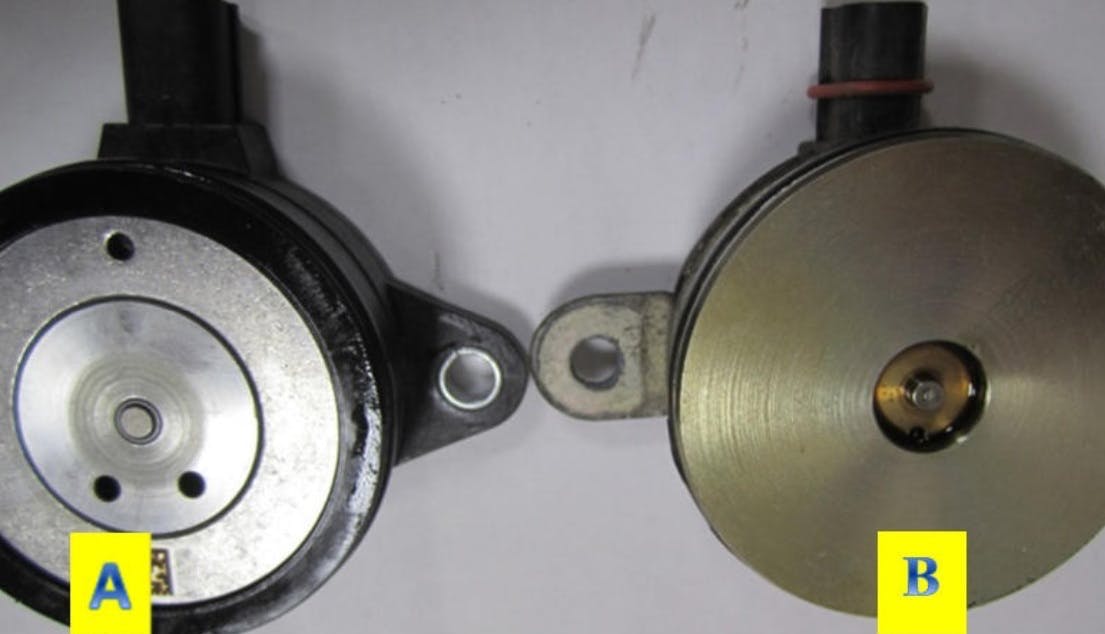

A link harness is available, P/N C2D40548, to join the existing harness to the new VCT solenoid connector. If the VCT solenoid to be replaced looks like part “A” in the accompanying photo, then a link harness is not needed. If the part to be replaced looks lie part “B” in the photo, you will need the link harness.

About the Author

Information courtesy of Mitchell 1

Information for Technical Service Bulletins comes from ProDemand, Mitchell 1's auto repair information software for domestic and import vehicles. Headquartered in San Diego, Mitchell 1 has provided quality repair information solutions to the automotive industry since 1918.
