Gear Display Absence Hits Chevy

Jan. 13, 2022

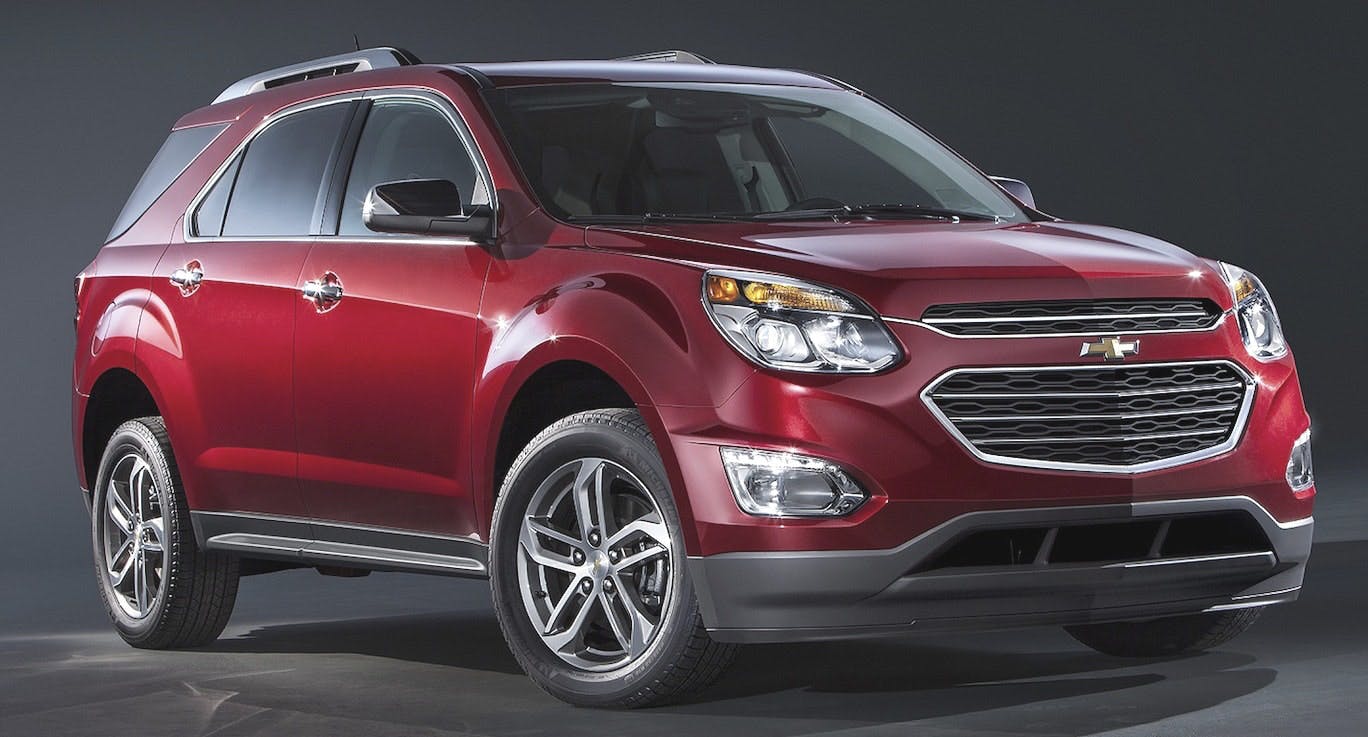

Some owners of 2009-2017 Chevy Equinox, Impala, Malibu or Traverse vehicles may comment that the check engine light is on, and in some cases, the gear (PRNDL) display may be absent.

Information courtesy of Mitchell 1

Mike Mavrigian

Some owners of 2009-2017 Chevy Equinox, Impala, Malibu or Traverse vehicles may comment that the check engine light is on, and in some cases, the gear (PRNDL) display may be absent. The technician may find diagnostic trouble code (DTC) P182E set as active or history in the TCM (transmission control module).

Verify proper shift cable adjustment.

Verify proper ECM Park/Neutral switch status in all ranges.

Verify proper internal mode switch (IMS) A/B/C/P parameters in all ranges.

Operate the vehicle within the Conditions for Running the DTC and freeze frame/failure records data in an attempt to duplicate the DTC. If the DTC does not reset, replace the IMS (lever, manual shift detent with shaft position switch assembly). If the DTC does reset, complete the Circuit/System Testing steps. If DTC U0101 is set as active or history in the electronic brake control module, it should be ignored as it has been found to be falsely set.
