TSBs

Wind-Proofing RAM Trucks

Feb. 1, 2023

This bulletin applies to 2016-2017 RAM 1500 and 2500 trucks built on or after Aug. 10, 2015 and on or before Sept. 18, 2017, equipped with power heated door mirrors, fold-away mirrors or power multi-function fold-away mirrors. One or both mirrors may have excessive wind noise.

Information courtesy of Mitchell 1,

Mike Mavrigian

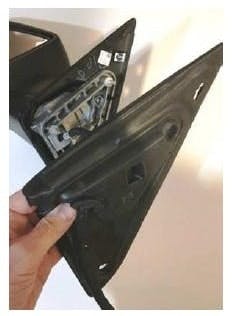

Cover all openings on the gasket and wiring harness with mylar tape.
|Photo Credit: Mitchell 1

Remove both mirrors and discard the mirror door gaskets. Install a new gasket P/N 68418326AA (RH) and/or 68418327AA (LH). Cut an opening and install a piece of mylar tape on the mirror door gasket and around the folding mirror wiring harness, covering all openings or voids. Install the mirror(s). The mylar tape is P/N 68279699AA. Order one mylar tape per mirror.
