If the warranty claim code was not recorded on the job card, the code can be retrieved in the SPS2 system. Open TLC on the computer used to program the vehicle.

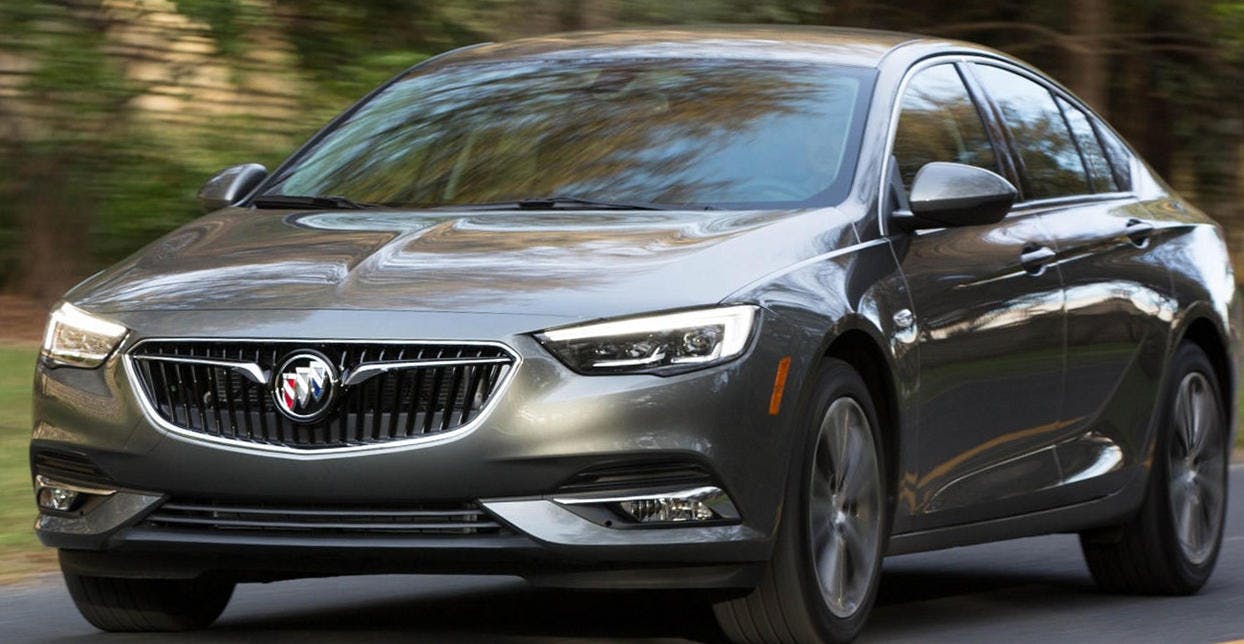

This bulletin applies to a recall involving 2018-2020 Buick Regal vehicles. Following a partial or full loss of vacuum-brake assist pressure, the vehicle may exceed the stopping distance requirement. The EBCM (electronic brake control module) should be reflashed.
If the warranty claim code was not recorded on the job card, the code can be retrieved in the SPS2 system. Open TLC on the computer used to program the vehicle. Select and start SPS2. Select Settings. Select the warranty claim code tab. The VIN, warranty claim code and date/time will be listed on a roster of recent programming events. Reprogram the electronic brake control module. Refer to K17 electronic brake control module: programming and setup in SI. Perform the configuration and setup on the EBCM.
