Fixing Dodge No-Start Problem

This bulletin applies to 2011-2016 Dodge Charger, 2011-2016 Chrysler 300 and 2011-2016 Dodge Challenger vehicles. If, after replacing the fuel pump module, you experience a crank/no-start, you must replace the fuel pump harness connector (supplied with a new revised fuel pump kit), even if there are no issues with the old connector.

Information courtesy of Mitchell 1

March 1, 2023

2 min read

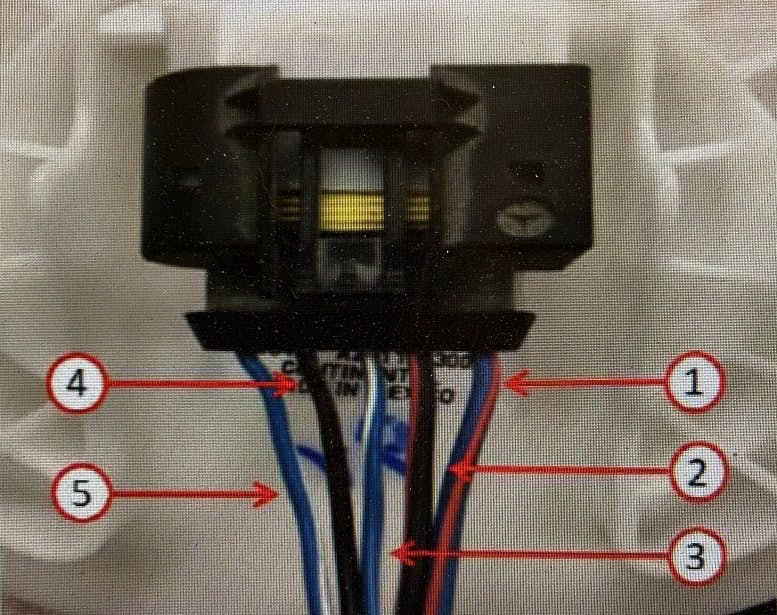

Old harness connector. 1) fuel pump control output B+; 2) fuel pump ground -; 3) fuel level sensor signal; 4) fuel level sense return; 5) fuel level signal two.

New harness connector. 1) fuel pump control output B+; 2) fuel level sensor signal; 3) fuel pump ground; 4) fuel level sense return; 5) fuel level signal two.
|Photo Credit: Mitchell 1

OLD FUEL PUMP KIT NEW FUEL PUMP KIT

05136022AI............................................. 05136022AJ

68102700AB............................................ 68102700AC

68103913AC............................................ 68103913AD

68145815AB............................................ 68145815AC
