    Repairing Ford Damaged Wiring

    Dec. 27, 2023

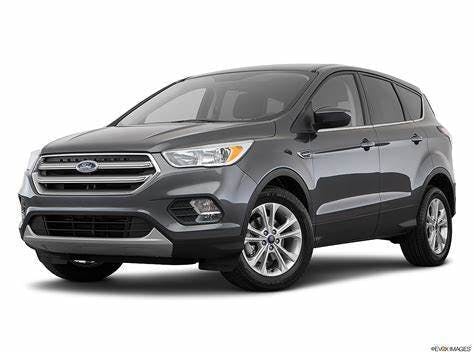

    Some 2017-2018 Ford Escape vehicles equipped with a 1.5L or 2.0L engine may exhibit fuse F34 open, and illuminated MIL and DTC P0034, P023A, P0245, P0480, P0481, P0645, P06A0, P06DB, P188D, P02602 and/or P2681 set in the PCM.
    Ford
    The vehicle may also exhibit an AWD fault warning and/or traction control light on. Inspect the 12A690 (1.5L) or 12C508 (2.0L) wiring harness from the battery junction box to the PCM for wiring harness retainers not installed correctly, allowing chafing to occur at multiple points.
    The vehicle may also exhibit an AWD fault warning and/or traction control light on. Inspect the 12A690 (1.5L) or 12C508 (2.0L) wiring harness from the battery junction box to the PCM for wiring harness retainers not installed correctly, allowing chafing to occur at multiple points.

    Some 2017-2018 Ford Escape vehicles equipped with a 1.5L or 2.0L engine may exhibit fuse F34 open, and illuminated MIL and DTC P0034, P023A, P0245, P0480, P0481, P0645, P06A0, P06DB, P188D, P02602 and/or P2681 set in the PCM.

    The vehicle may also exhibit an AWD fault warning and/or traction control light on. Inspect the 12A690 (1.5L) or 12C508 (2.0L) wiring harness from the battery junction box to the PCM for wiring harness retainers not installed correctly, allowing chafing to occur at multiple points. Repair damaged wiring as needed.

    About the Author

    Information courtesy of Mitchell 1

    Information for Technical Service Bulletins comes from ProDemand, Mitchell 1's auto repair information software for domestic and import vehicles. Headquartered in San Diego, Mitchell 1 has provided quality repair information solutions to the automotive industry since 1918.
