Some 2017 Ford Escape vehicles equipped with 17-inch wheels and built on or before Oct. 10, 2016 may exhibit an illuminated electric park brake warning indicator with DTCs C1034, C1A43, C2005, C2007, C2008 and/or U2002. 4WD vehicles may also exhibit an ABS lamp illuminated with DTCs C003A or C0037.

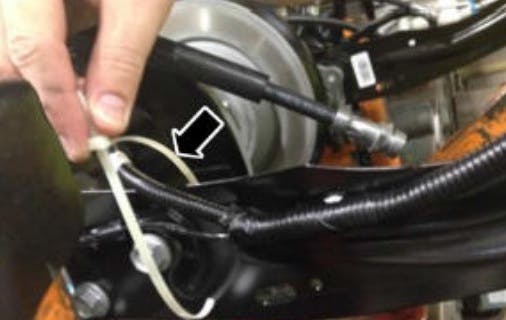

Inspect the rear electric park brake/brake skid control wiring harness (2C055) on both sides. Inspect the harness for damage where each harness is routed closest to the rear wheels. If either/both harnesses is damaged, replace the affected wiring harness(s). Tie strap both harnesses to gain sufficient clearance away from both rear wheels.
P/N PART
GJ7Z-2C055-M............rear brake skid control wiring, left/right, 4WD
GJ7Z-2C055-L.............rear brake skid control wiring, left side, 2WD
GJ7Z-2C055-RA..........rear brake skid control wiring, right side, 2WD
WA-14-SBA.................tie strap
