Pipe Weld Causes Ford Explorer Problems

    May 30, 2023
    An improperly welded exhaust Y-pipe may cause an illuminated MIL with DTC P013A and/or P013C stored in the PCM of 2013-2019 Ford Explorer vehicles equipped with a 3.5L twin independent variable camshaft timing (Ti-VCT) engine.
    Photo: Ford

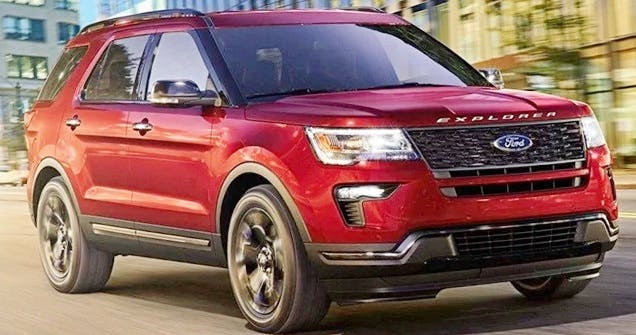

    Inspect the exhaust Y-pipe on 2013-2019 Ford Explorer vehicles equipped with a 3.5L twin independent variable camshaft timing (Ti-VCT) engine.
    Inspect the exhaust Y-pipe on 2013-2019 Ford Explorer vehicles equipped with a 3.5L twin independent variable camshaft timing (Ti-VCT) engine.

    Some 2013-2019 Ford Explorer vehicles equipped with a 3.5L twin independent variable camshaft timing (Ti-VCT) engine may exhibit an illuminated MIL with DTC P013A and/or P013C stored in the PCM.

    This may be due to an improperly welded exhaust Y-pipe. Inspect the Y-pipe and replace if needed.

    REPLACEMENT PARTS

    Exhaust Y-pipe............... DB5Z-5G274-B

    M10 nut (pack of 4)....... W714265-S441

    Gasket.............................7T4Z-9450-AA

    About the Author

    Information courtesy of Mitchell 1

    Information for Technical Service Bulletins comes from ProDemand, Mitchell 1's auto repair information software for domestic and import vehicles. Headquartered in San Diego, Mitchell 1 has provided quality repair information solutions to the automotive industry since 1918.
