Fixing Ford Washer Fluid Leak

April 12, 2023

Some 2015-2020 Ford F-150 trucks (except Raptor) equipped with a front camera washer may exhibit a washer fluid leak at the front camera washer jet when not in use.

Information courtesy of Mitchell 1

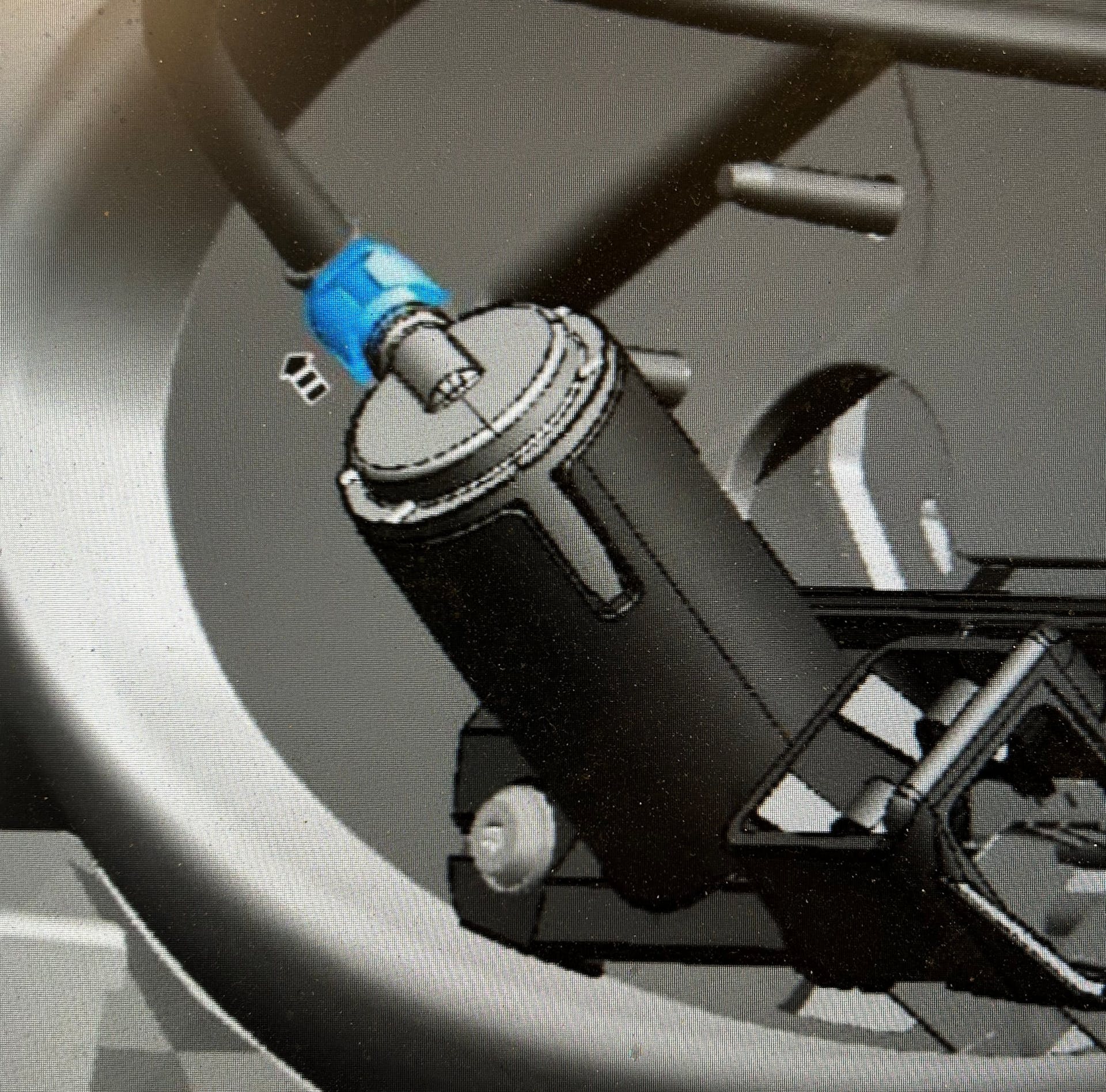

Remove the washer jet hose and pull the washer jet out of its housing.

Some 2015-2020 Ford F-150 trucks (except Raptor) equipped with a front camera washer may exhibit a washer fluid leak at the front camera washer jet when not in use. This may be due to the rubber seal internal to the jet. To correct this, replace the washer jet P/N HC3Z-17603-B.

Remove the radiator grille and remove the hose from the washer jet. Pull the washer jet out of the grille. Reverse the procedure to install the new washer jet.
