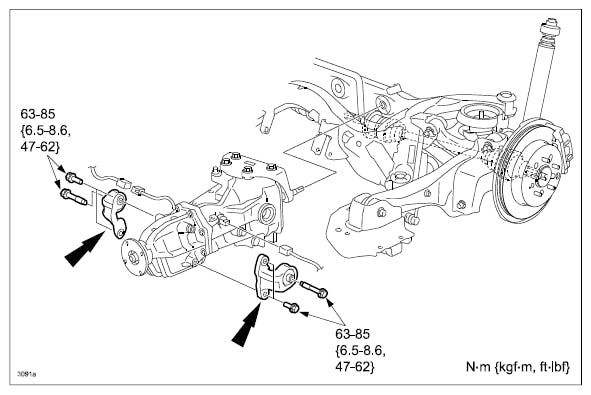

Note the location of the rear differential mounting rubbers. Torque the mounting screws to 47- 62 ft.-lb.
Note the location of the rear differential mounting rubbers. Torque the mounting screws to 47- 62 ft.-lb.
Some 2007-2015 Mazda CX-9 AWD vehicles may experience a vibration and/or noise from the rear of the vehicle during acceleration.
Due to environmental heat and heat from the exhaust system, the rear differential mounting rubber may become hardened and cracked. To eliminate this concern, the rubber material has been improved. Replace the rubber mounts as needed using P/N L214-28-68XB (right) and/or L214-28-68YB (left). The mounting rubbers can be replaced without removing the rear differential or propeller shaft.
