Mazda notes that some 2013-2016 CX-5 vehicles may exhibit a knocking noise from the rear of the
vehicle. Upon inspection, cracks may be found in the rear differential mount bushing. This is caused by
insufficient durability of the bushing.

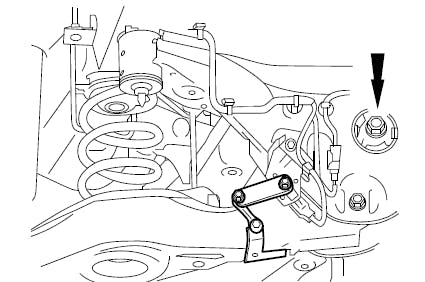

Mazda notes that some 2013-2016 CX-5 vehicles may exhibit a knocking noise from the rear of the
vehicle. Upon inspection, cracks may be found in the rear differential mount bushing. This is caused by
insufficient durability of the bushing. To eliminate the noise, the shape of the bushing has been
changed. Replace the rear cross member with a modified one according to the instructions on MS3
online.
P/N PART QTY KD35-28-80XG.............cross member ........... 1
