Contaminated Connector Causes Mazda Issue

June 24, 2022

Owners of 2007-2015 Mazda CX-9 vehicles equipped with a 3.7L engine may complain about a check engine light on.

65b85b98403408001f438a2e Mazdaconnectiontsb

Owners of 2007-2015 Mazda CX-9 vehicles equipped with a 3.7L engine may complain about a check engine light on.

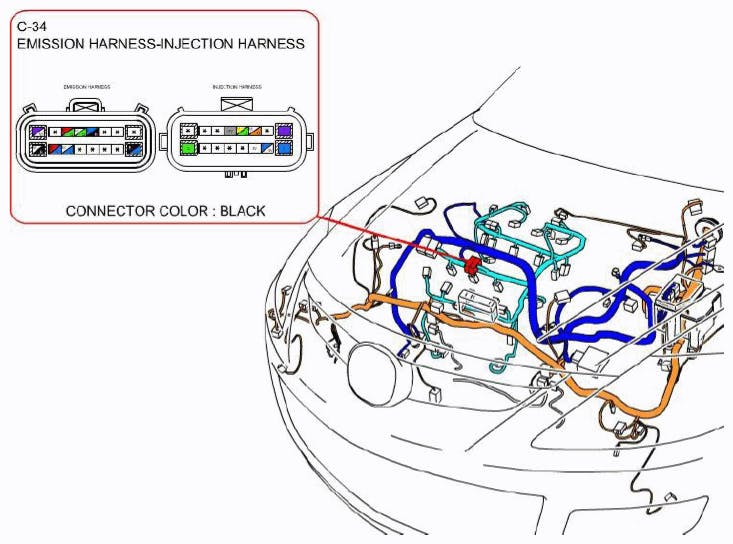

If DTCs P2A04:00 (HO2S LH circuit range/performance), P2272:00 (HO2S LH signal stuck lean) and/or other DTCs are found during diagnosis, after verifying the concern, inspect the C-34 connector for engine oil contamination.

If contamination is found, inspect the engine oil pressure switch for external leaks. If leaks are found, replace the oil pressure switch.

Clean the C-34 connector and harness of oil. Inspect the related O2 sensors. If sensors are operating correctly, clear DTCs and test drive. If O2 sensors are not operating correctly, replace as needed.

About the Author

Information courtesy of Mitchell 1

Information for Technical Service Bulletins comes from ProDemand, Mitchell 1's auto repair information software for domestic and import vehicles. Headquartered in San Diego, Mitchell 1 has provided quality repair information solutions to the automotive industry since 1918.
