Check Acura Fluid Pressure Sensors Before Replacement

This bulletin applies to 2014-2017 Acura MDX and 2015-2017 TLX with SH-AWD. If you suspect a leak at the rear differential axle seal or pinion seal, the actual culprit may be something loose or damaged above it. A loose or damaged fluid pressure sensor will drip rear differential fluid onto the axle seal. Also, a loose fluid pressure check port will drip fluid onto the pinion seal.

,
Jan. 30, 2023
Photo Credit: Mitchell 1

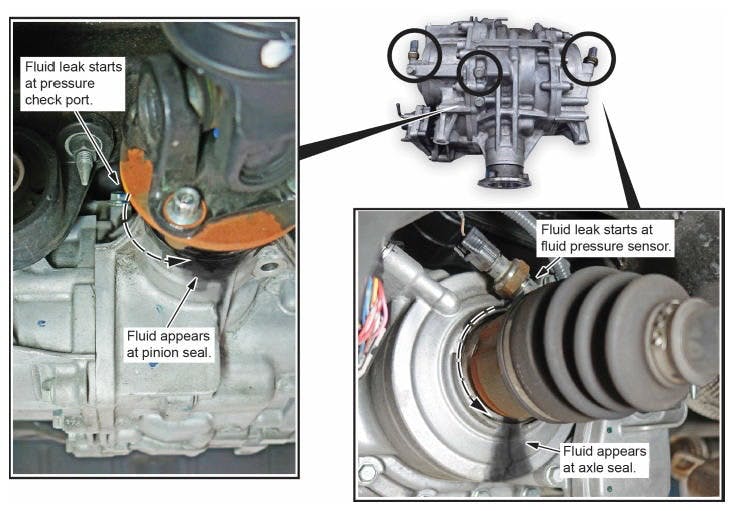

The left photo shows the pressure check port, which could drip onto the pinion seal. In the right photo, note that the fluid pressure sensor can drip onto the axle seal.

The left photo shows the pressure check port, which could drip onto the pinion seal. In the right photo, note that the fluid pressure sensor can drip onto the axle seal.

This bulletin applies to 2014-2017 Acura MDX and 2015-2017 TLX with SH-AWD. If you suspect a leak at the rear differential axle seal or pinion seal, the actual culprit may be something loose or damaged above it. A loose or damaged fluid pressure sensor will drip rear differential fluid onto the axle seal. Also, a loose fluid pressure check port will drip fluid onto the pinion seal.

Before considering rear differential replacement/service, be sure to check these areas first. The repair could be as easy as tightening or replacing the fluid pressure sensor or tightening the fluid pressure check port.
