Subaru Spring Change

Oct. 23, 2017

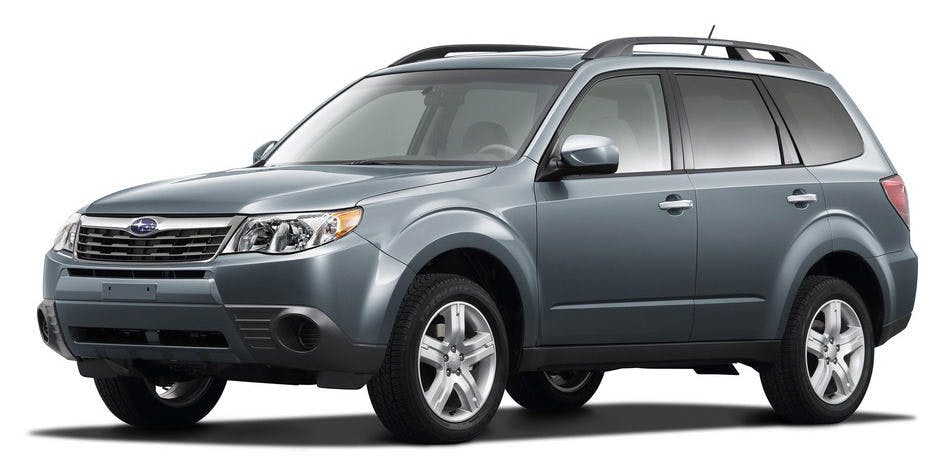

This bulletin applies to 2011 and later Subaru Foresters with the FB engine, 2012 Impreza with the FB engine and 2013 Legacy and Outback models with the FB engine.

This bulletin applies to 2011 and later Subaru Foresters with the FB engine, 2012 Impreza with the FB engine and 2013 Legacy and Outback models with the FB engine.

A change was made to the valve springs in the FB engine. The coils of the new springs are closer together at the bottom and further apart at the top (retainer end). The new springs also feature a green paint mark for easy identification. The old type springs feature a red paint mark.

If valve springs are being replaced, do not mix the new and old type springs. All springs should be replaced with the new springs. The end of the spring with narrow pitch (coils closer together) must be installed against the cylinder head spring seat.

                                          NEW TYPE                     OLD TYPE

Part number……………….13217AA520…………….13217AA540

Spring free height…………41.06mm………………...38.60mm

Spring configuration………irregular 2-step pitch…...equal pitch

Cross-section shape………ellipse……………………round
