In Focus: DG Technologies Dearborn Protocol Adapter
The DG Technologies Dearborn Protocol Adapter, No. DPA 5, is a dual CAN or quad CAN vehicle network translator device offering OEM diagnostics and ECU reprogramming capabilities in a wireless device for both the commercial vehicle and automotive industries. The DPA 5 Bluetooth device utilizes both SAE J2534 and TMC RP1210 as co-existing APIs. It combines diagnostic and reprogramming capabilities in a multi-application environment enabling network communication regardless of vehicle type. The DPA 5 facilitates diagnostics, End-Of-Line (EOL) testing, reprogramming and re-flashing of vehicle ECU’s. The DPA 5 is bundled with FREE DG Diagnostics and Adapter Validation Tool software.
Application
The DPA 5 enables bi-directional control of a vehicle network during diagnostic and reprogramming activities to pinpoint repairs and correct problems.
Selling points
- The product serves as a Class 1 through Class 8 diagnostic and reprogramming kit.
- Diagnostic triage software for light, medium and heavy duty vehicles is included.
- Software and firmware auto update is included.
- There are no annual licensing fees.
- Two CAN channels.
- Standard two-year warranty.
Features and benefits
- Offers diagnostic and ECU reprogramming functionality for light, medium and heavy duty vehicles.
- Works with OEM diagnostic software and aftermarket software.
- Works with OEM ECU reprogramming sites for calibration updates.
Origin
Technicians require access to control modules on a vehicle network to diagnose, repair and calibrate them when control module updates are made available by the OEM.
Manufacturing specs
The product is manufactured in Farmington Hills, Mich. and weighs 3 lbs.
Storage and display

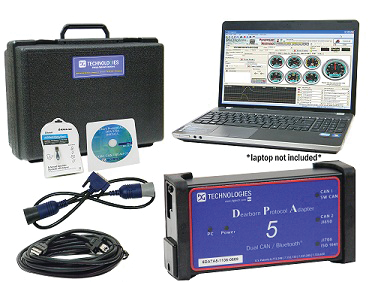

The DG-DPA5-BT-V13- KIT) is a kit and includes a carry case, DPA 5 protocol adapter, 6- and 9-pin cable, OBD-II cable, USB cable, Software/drivers CD with user manual and quick start guide.
Suggested retail price
$949
For more information
248-888-2000, ext:312
