This bulletin applies to 2021-2022 Jeep Grand Cherokee vehicles built on or after Nov. 11, 2021, and on or before Jan. 1, 2022, equipped with a 5.7L V8.

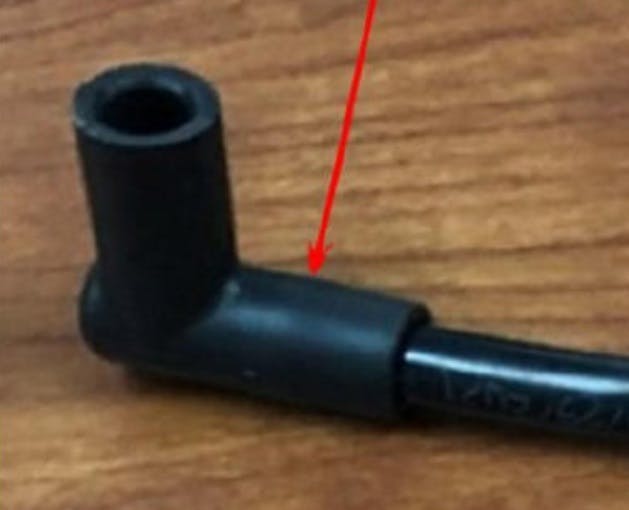

Example of the tube pushed too far into the elbow. Note that the bead on the tube is not visible.
This bulletin applies to 2021-2022 Jeep Grand Cherokee vehicles built on or after Nov. 11, 2021, and on or before Jan. 1, 2022, equipped with a 5.7L V8. The MIL may be on, accompanied by DTC P0441 (EVAP purge system performance) and/or P0452 (EVAP pressure switch “A” stuck closed).
Photo courtesy of Mitchell 1

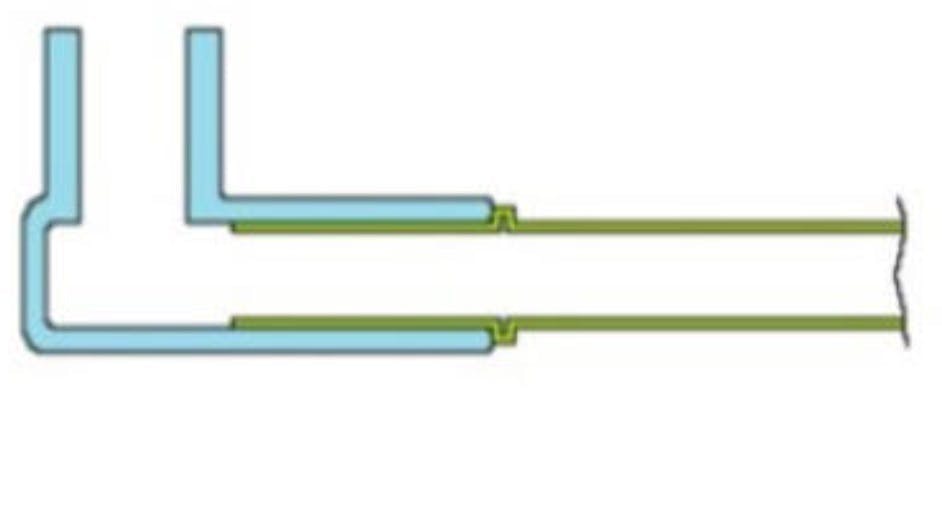

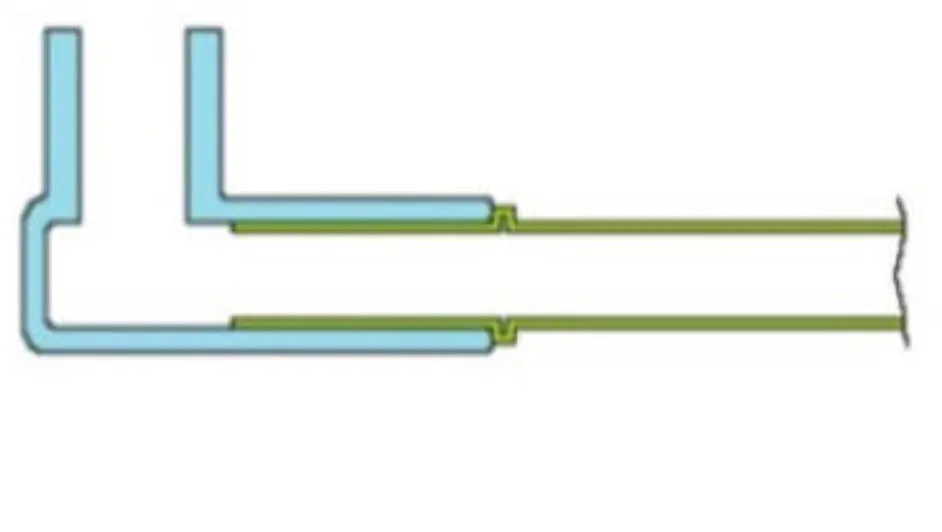

Correct position of the tube. Note that the bead is visible at the edge of the elbow
Inspect the purge tube at the elbow on the intake manifold. The purge tube may be inserted too far into the elbow.
Photo courtesy of Mitchell 1

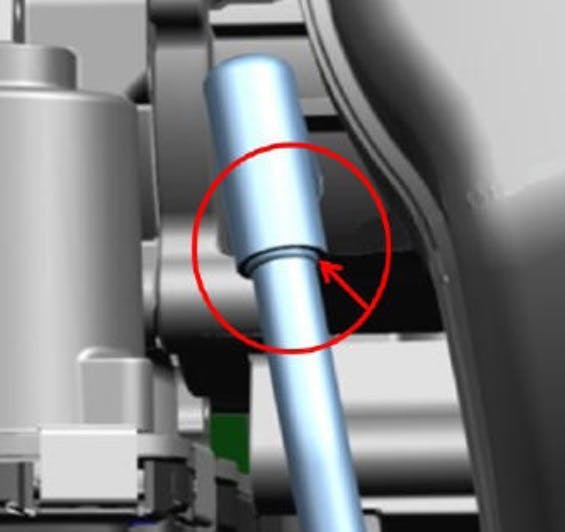

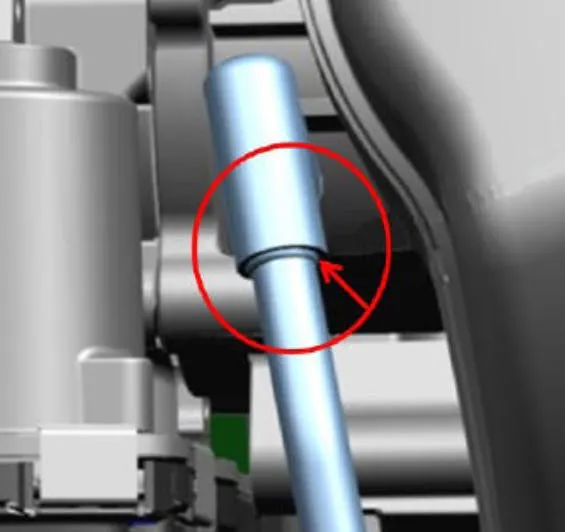

Another view. Note that the bead is visible.
Pull the nylon tube from the rubber elbow until the bead is positioned at the edge of the elbow. Make sure that the elbow is seated properly at the intake manifold. Clear DTCs.
