This bulletin applies to 2016-2020 Cadillac CT6 vehicles. Customers may comment about a whining/whirring, whistling, squeaking or groaning/growling noise at low speed maneuvers up to 40 mph.
Remove the front wheel drive intermediate shaft housing (indicated by the number 1 illustration).
Photo courtesy of Mitchell 1

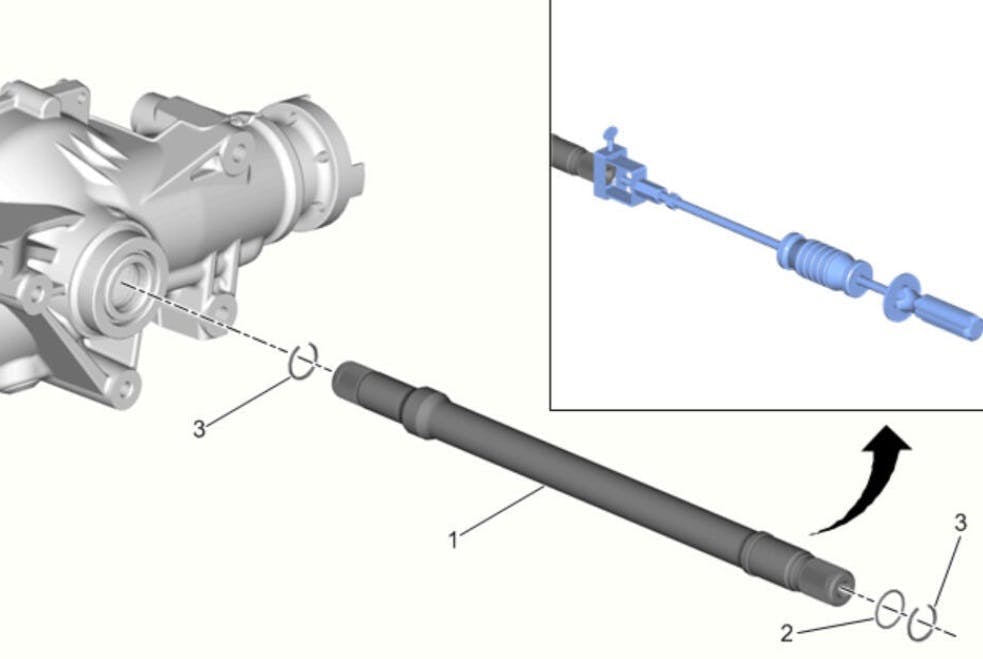

Attach the DT-44467 output shaft assembly remover/installer to the shaft. Attach the GE-6125-1B slide hammer to the shaft remover.
This bulletin applies to 2016-2020 Cadillac CT6 vehicles. Customers may comment about a whining/whirring, whistling, squeaking or groaning/growling noise at low speed maneuvers up to 40 mph.
Photo courtesy of Mitchell 1
Using the tool, remove the front wheel drive intermediate shaft from the differential carrier.

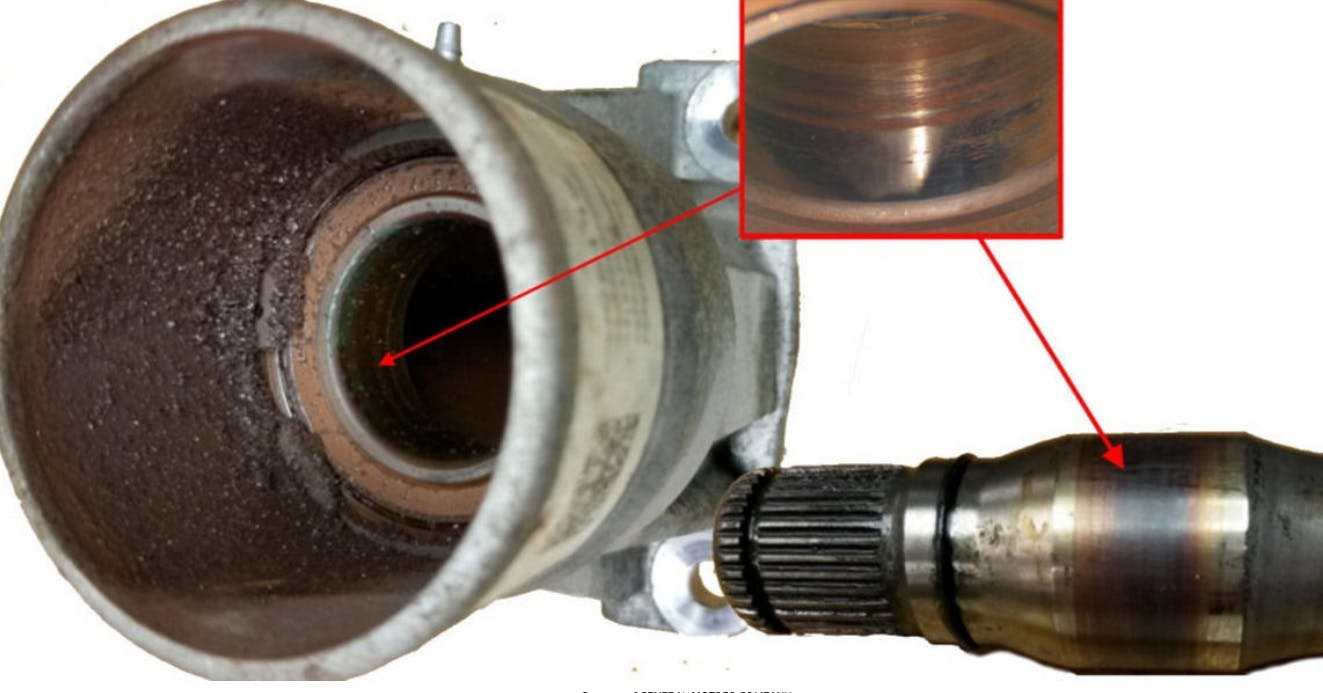

The noise may seem to be coming from the engine/wheel area. The cause may be fretting between the intermediate shaft and the front intermediate shaft bearing/housing (IDS bearing).
Photo courtesy of Mitchell 1

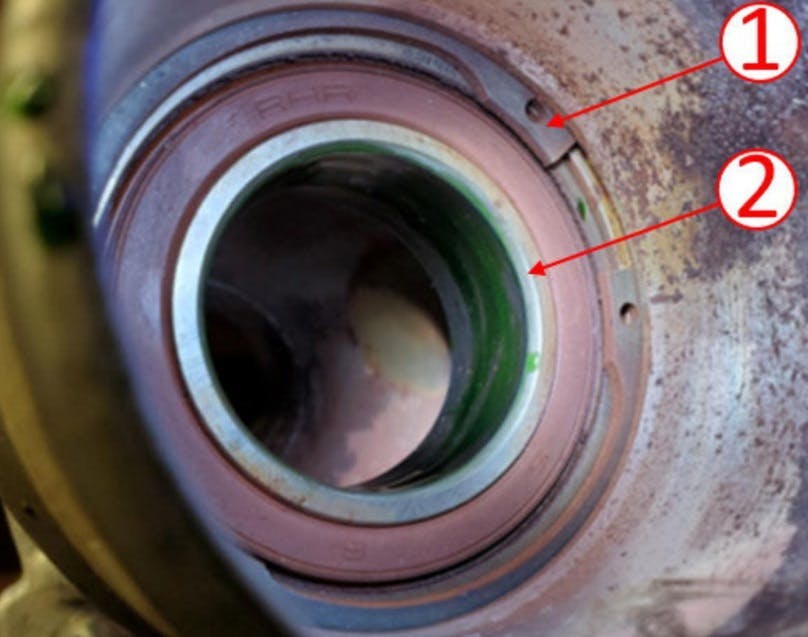

Remove the support bearing snap ring (1).
The fretting is the result of having a slip fit interface between the bearing and the IDS shaft, combined with a bearing that has around 0.5 Nm of torque to rotate.
Photo courtesy of Mitchell 1

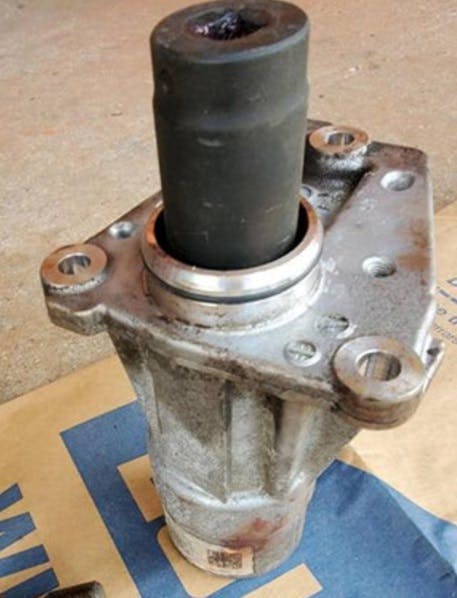

Using bearing tool J-06133-A, press the bearing from the housing. Position the new bearing to the housing. Using bearing tool J-41736, press the bearing into the housing until seated. Install a new ring.
Perform a road test to identify the noise at this area. Chassis eras will be helpful.
Photo courtesy of Mitchell 1

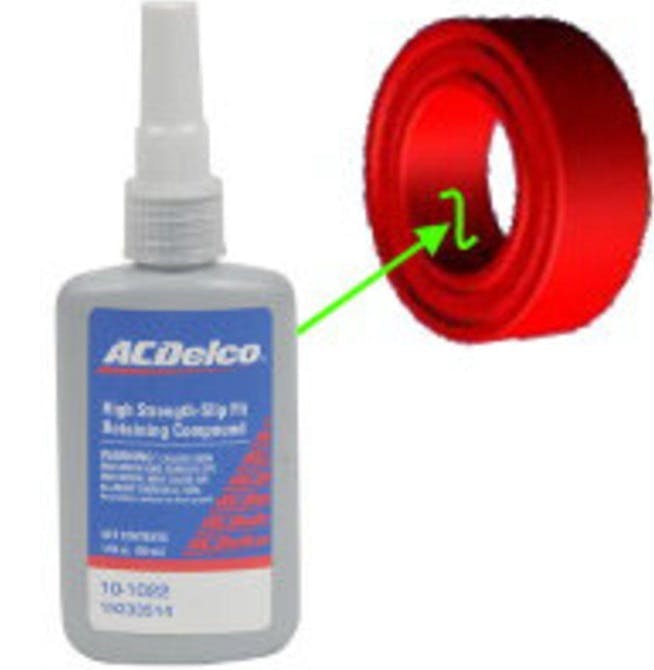

Using High Strength Slip Fit Bonding Compound P/N 19333514, apply a thin coating to cover the new inner bearing race. Install the new IDS shaft.
If confirmed, replace the IDS shaft and IDS shaft housing.
