Inspecting BMW flex disc cracks

    June 4, 2024
    This bulletin applies to all BMW models. When performing a routine underbody inspection, the flexible disc located at the front, rear or at both ends of the propeller shaft may indicate signs of cracking.
    Related To:
    Photo courtesy of Mitchell 1

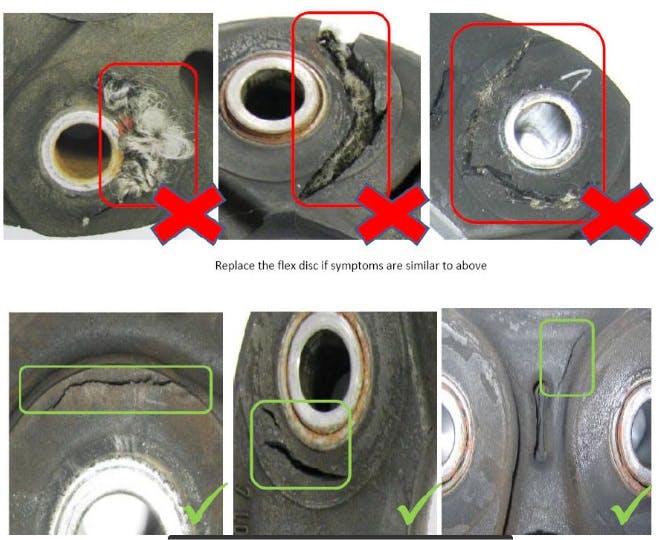

    Diagnosis of the driveshaft flexible disc. See the top row for an example of flex discs that must be replaced. Examples of normal minor cracks are shown in the bottom row.
    Diagnosis of the driveshaft flexible disc. See the top row for an example of flex discs that must be replaced. Examples of normal minor cracks are shown in the bottom row.

    This bulletin applies to all BMW models. When performing a routine underbody inspection, the flexible disc located at the front, rear or at both ends of the propeller shaft may indicate signs of cracking.

    The outer surface of the disc consists of hardened rubber which has a slightly brittle characteristic.

    Due to the ongoing exposure to driveshaft load reversals and subsequent slight flexing, cracks can develop on the disc surface. Minor cracking is normal and acceptable.
