Some 2016-2018 Toyota Tacoma vehicles equipped with a 2GR-FKS engine may exhibit an oil leak from the cam sensor bolt hole(s). Remove the affected cam housing and replace with new housing.

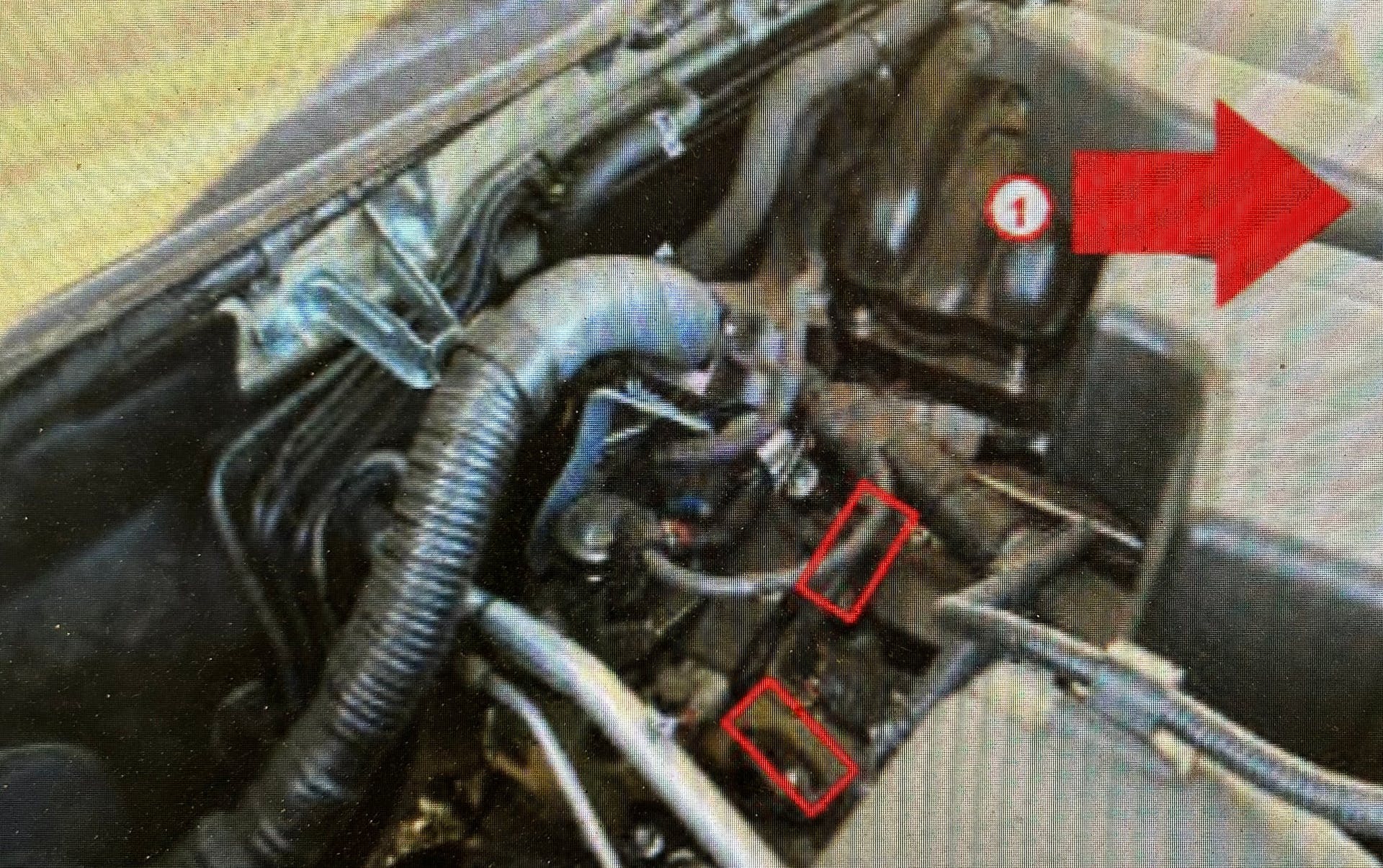

Cam sensor locations. The red arrow indicates the vehicle front.
Some 2016-2018 Toyota Tacoma vehicles equipped with a 2GR-FKS engine may exhibit an oil leak from the cam sensor bolt hole(s). Remove the affected cam housing and replace with new housing. Always install new housing bolts!
The previous P/N of flange bolts is 90105-A0103. The NEW bolt P/N is 90105-06323. The Previous RH cam housing is 11103-0P020...the NEW RH cam housing P/N is 11103-0P022. The Previous LH cam housing P/N remains as 11104-0P020.
