Infiniti Issue With ABS Codes

Sept. 20, 2021

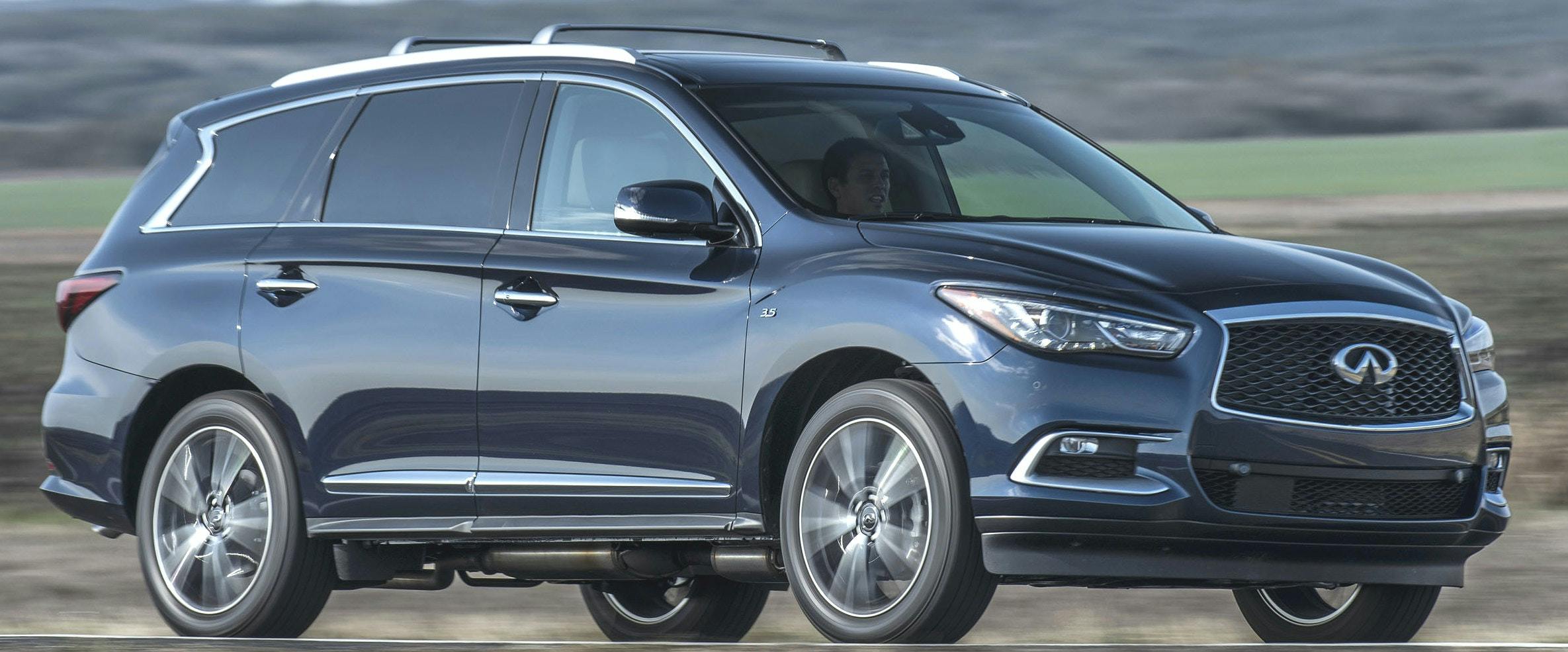

This bulletin applies to 2014-2017 Infiniti QX60 vehicles as well as a number of additional Infiniti models.

This bulletin applies to 2014-2017 Infiniti QX60 vehicles as well as a number of additional Infiniti models.

When diagnosing for DTC C1130 (engine signal), note that any P-codes must be noted and repaired as needed before proceeding further. DTC C1130 is an ABS DTC that indicates an output signal of the ECM is not recognized. Absent or incorrect ECM signals that are indicated by corresponding P-codes may trigger C1130 in the ABS control unit. Some vehicle features that can be affected by absent or incorrect ECM signals are forward emergency braking (FEB), intelligent cruise control (ICC) and VDC/ABS/TCB.
