Replace Mazda Dust Cover on Driveshaft

This concern is likely to occur when driving at speeds 37 – 50 mph with the ATF at normal operating temperature. The noise is caused by stick-slip between the oil seal at the transaxle and the dust cover of the driveshaft. To correct the issue, the thickness of the dust cover has been increased.

Information courtesy of Mitchell 1

Mike Mavrigian

Nov. 28, 2022

2 min read

You may encounter a 2012-2018 Mazda3 vehicle equipped with an automatic transmission with a complaint of a squeak noise from the right front driveshaft at the transaxle.

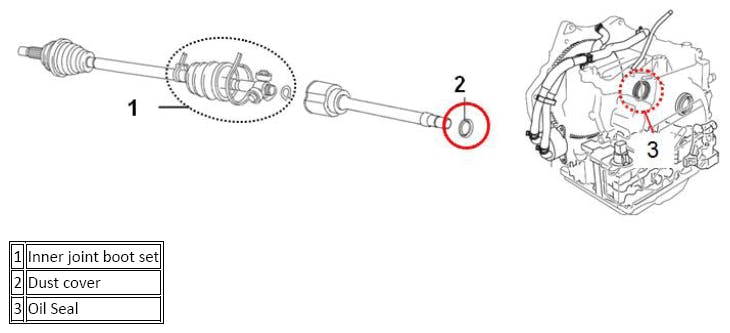

Replace the dust cover and the transfer oil seal with modified ones according to service manual instructions and verify the repair.

P/N PART

FTH1-25-722................. dust cover

FZ01-27-238.................. oil seal

D651-33-042A............... lock nut

T060-26-169A............... snap pin

FTU8-22-540................. boot set, inner joint, Mazda3 with 2.0L

FTC4-22-540................ boot set, inner joint, Mazda3 with 2.5L
