Cold Navigator

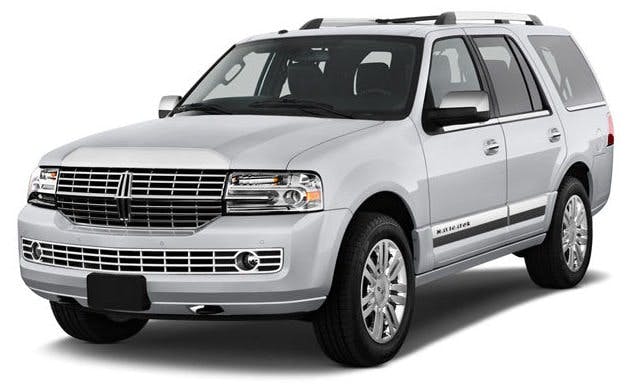

Some 2011-2013 Lincoln Navigator vehicles may exhibit a delayed forward or reverse transmission engagement condition when cold.

Remove the main control. Refer to workshop manual section 307-01. Replace the clutch exhaust valve and the converter drain-back valve. Removal of the shift solenoids and the valves internal to the upper and lower main control sections is not required for this procedure.

Assemble the main control using a new separator plate. Check balls must be installed in the proper locations to ensure correct transmission operation. Install the main control and fill the transmission.

P/N ................................... PARTS

CL3Z-7D142-A...................Valve – exhaust/drain back valve (2 required)

CL3Z-7Z490-A....................Separator plate (2012-2013 Navigator)

CL2Z-7Z490-C....................Separator plate (2011 Navigator)

XT-10-QLV...........................Motorcraft MERCON LV ATF
