Innovative tool sets new standard for brake line flaring

Oct. 24, 2017

The PFT409 will be demonstrated at the S.U.R.&R booth at the AAPEX show (Booth 953 in the Tools and Equipment Section) at the Sands Expo in Las Vegas October 31-November 2, 2017.

Motor Age Wire Reports

S.U.R.&R. will unveil a new compact pistol grip flaring tool that sets the benchmark for single-person line flaring – regardless of whether the repair is on or off the vehicle – for brake and other automotive fluid line applications. The PFT409 will be demonstrated at the S.U.R.&R booth at the AAPEX show (Booth 953 in the Tools and Equipment Section) at the Sands Expo in Las Vegas October 31-November 2, 2017.

“The PFT409 is engineered so that one person can consistently create professional-grade flares, even while working in tight spaces on the vehicle. It’s easy on the hand and easy on the tech,” said Bob Joy, S.U.R.&R. National Sales Manager. “This eliminates problems with traditional flaring tools that, oftentimes, require two people to operate, are too bulky for tight spaces and produce inconsistent flares which adds labor and time to the job.”

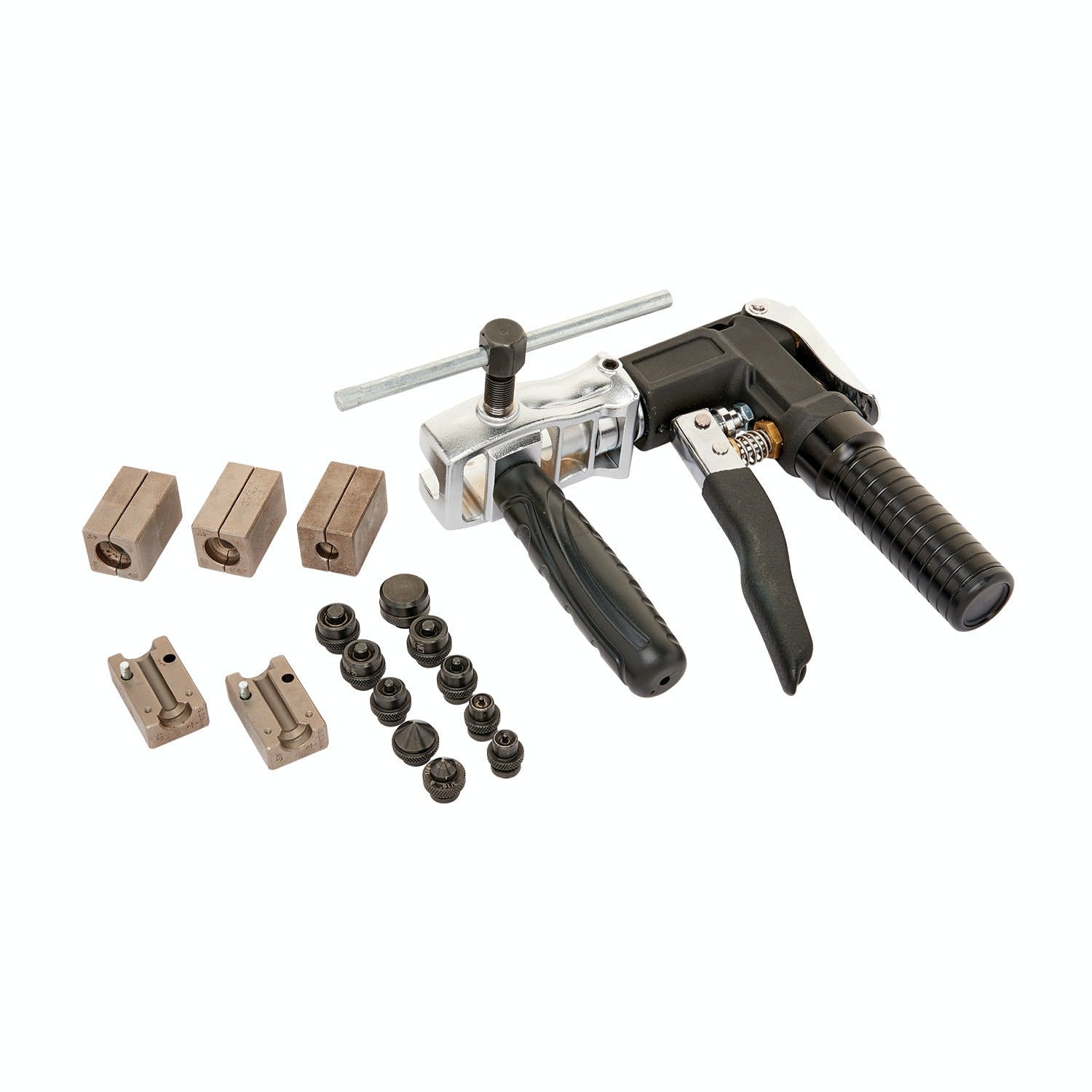

Innovative Design for Creating Quality Flares The PFT409 features a compact two-piece design. There is a heavy-duty hydraulic pistol grip handle that delivers 6,000 PSI of powerful crimping pressure and requires little effort to squeeze. A magnetic yoke holds the dies securely in place helping the installer avoid dropping the dies or misaligning the tubing during set-up. The yoke is attached to a secure-grip handle. The two pieces swivel together providing optimum control and positioning for on-vehicle flaring. For flaring off the vehicle, just remove the yoke handle and use the tool in a vice.Watch this short video to see the PFT409 in action: https://www.youtube.com/watch?v=WH415y5szMw The PFT409 comes with all the punches and dies needed to create the most widely used SAE and DIN flares on S.U.R.&R. UltraBEND® (bendable, non-corrosive), steel or coated brake tubing. The tool will also create inverted flares for fuel, power steering and transmission lines.Punches

Sizes include 3/16”/4.75 mm, 1/4”6 mm, 5/16”/8 mm, 3/8”/10 mm (single/double only)
A detent ball on the hydraulic handle allows the punches to be changed quickly

Dies

Sizes include 3/16”/4.75 mm, 1/4”/6 mm, 5/16”/8 mm, 3/8”/10 mm
Die channels (3/16”/4.75 mm, 1/4”/6 mm sizes) are smooth to avoid tubing scarring
Grooved channels (5/16”/8 mm, 3/8”/10 mm sizes) are included for extra gripping
Pins ensure accurate alignment of dies
Magnetic yoke hold dies securely in place

Applications

Brake flares: SAE Single (45° Bubble), SAE Double (45° Inverted), DIN Single (Mushroom)
Additional inverted flares for fuel, power steering and transmission lines

“We believe service technicians will find that the PFT409 sets the benchmark for single-person, professional flaring both on and off the car,” Joy said. “It eliminates the common struggles of tool set-up, alignment and positioning experienced by techs every day so they can very quickly create high quality flares with confidence.”

For more information about the entire S.U.R.&R. product line contact National Sales Manager Bob Joy at 1-800-390-3969 ext. 201 or [email protected]. Visit us online at www.surrauto.com
