Spicer Single Drive Axles

April 11, 2019

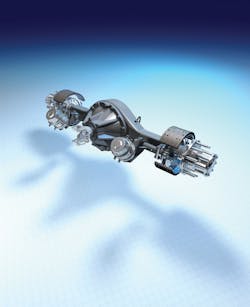

The Dana Incorporated S35-190FT Single-Reduction and S35-590FT Double-Reduction single drive axles have a gross axle weight rating of 35,000 lbs to maximize payload capacity for fire and rescue applications. Designed for the fire service segment, these single axles utilize steel-fabricated housings to support higher-weight applications with a shorter wheel base, allowing for a tighter turning radius and increased maneuverability. A 76-lb weight savings offers additional capacity for added equipment capabilities. The S35-190FT and S35-590FT models also feature a Venturi lubrication cover to minimize lube volume and optimize lube flow. For ease of service, the axle housings, seals, yokes, differential lock shift unit components, axle shafts, and external fasteners can all be serviced individually. An optional driver-controlled wheel differential lock is also available to enhance traction.
