In Focus: Lisle Corporation Manifold Drill Template

This drill template is designed to remove broken exhaust manifold studs on Ford 2V and 3V engines without damaging the cylinder head.

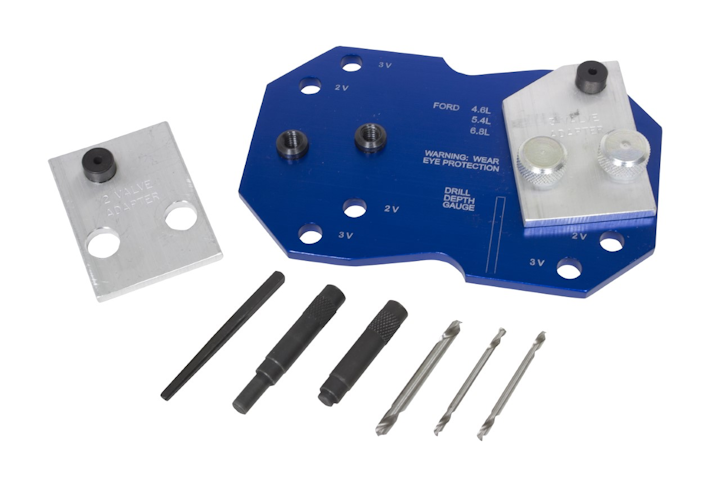

Thumbnail 68500 583f0b5dd8172

The Lisle Corporation Manifold Drill Template, No. 68500, is designed to remove broken exhaust manifold studs on 4.6L, 5.4L and 6.8L V10 two-valve and three-valve Ford Triton engines without damaging the cylinder head. Interchangeable plates and alignment pins help center the drill on the broken stud. A depth gauge for drilling is marked on the template and the stud extractor is then used to remove the broken stud.

Application

This drill template is designed to remove broken exhaust manifold studs on 4.6L, 5.4L and 6.8L V10 two-valve and three-valve Ford Triton engines without damaging the cylinder head.

Selling points

  • Helps technicians remove broken exhaust manifold studs on two-valve and three-valve Ford Triton engines.
  • The template helps save time and money on a problem that is a difficult job.
  • The affordable cost of the tool allows an individual to purchase the kit versus being owned by the shop.
  • Aligns drilling and sets proper drill depth to help ensure head is not damaged.

Features and benefits

  • Helps make a really tough job easier to complete.
  • Helps technicians beat the flat rate on a difficult job.
  • Interchangeable plates and alignment pins.

Origin

The idea for this tool came from technician input that called for a tool to help remove broken exhaust manifold studs on 4.6L, 5.4L and 6.8L V10 two-valve and three-valve Ford Triton engines without damaging the cylinder head.

Manufacturing specs

This item is made in U.S.A. It weighs 1 lb, 6 oz.

Storage and display

The drill template is available in a molded case with foam insert, including instructions.

Demonstration

To watch a video demonstration of the Lisle Corporation Manifold Drill Template, visit VehicleServicePros.com/20845409

Suggested retail price

$142.95

For more information

Lisle Corporation

7121-542-5101

www.lislecorp.com
