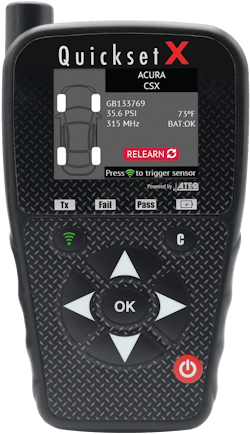

In Focus: ATEQ Quickset X TPMS Reset Tool, No. QUICKSETX

Oct. 1, 2020

Designed to reset TPMS systems in three easy steps.

The ATEQ Quickset X TPMS Reset Tool, No. QUICKSETX, is designed to scan vehicles’ TPMS sensors and reset the system. The Quickset X is the successor to the well-known Quickset TPMS reset tool. The tool can be used for swapping summer/winter tires, resetting a TPMS system after programming new sensors, or after rotating tires. The procedure is straightforward; simply select the vehicle’s make, model, and year, then scan each sensor in the wheel. Once all sensors are scanned, plug in the OBD-II Quick Connector into the vehicle’s ECU and press OK.

Application

The ATEQ Quickset X TPMS Reset Tool, No. QUICKSETX, is ideal for technicians who work primarily with TPMS systems, specifically in swapping winter and summer tire sets, performing TPMS resets via OBD, and rotating tires.

Features and Benefits

• Reset TPMS systems in three easy steps.

• Performs TPMS relearns via the OBD Quick Connector.

• Easily swap summer and winter tires with a single tool.

• Reset the TPMS system after installing new sensors or performing a tire rotation.

• Improved designed with an icon-based, color screen.

Selling Points

• No external module required.

• Fully updateable via PC.

• Dedicated website for updates, videos, and support.

• Worldwide TPMS technical support.

Origin

The original Quickset tool was designed for swapping summer and winter tire sets. The improved Quickset X TPMS tool accomplishes this, plus additional features. Users can easily see all sensor information on one screen, which is now icon-based. External software is also not required, allowing technicians to quickly reset the TPMS system via the vehicle’s ECU for faster and more accurate service.

Manufacturing/Engineering Specifications

The Quickset X TPMS Reset Tool measures 4” wide by 7” high by 1.5” deep and weighs .7 lbs. It has a 4.2 rechargeable lithium polymer battery, 2.8” color LCD, and 315 and 433 MHz frequency antenna. It is made in China.
