In Focus: Lisle Stripped Screw Extractor Set

Remove all stripped and rounded out Torx and internal drive screw heads.

Sept. 3, 2012

2 min read

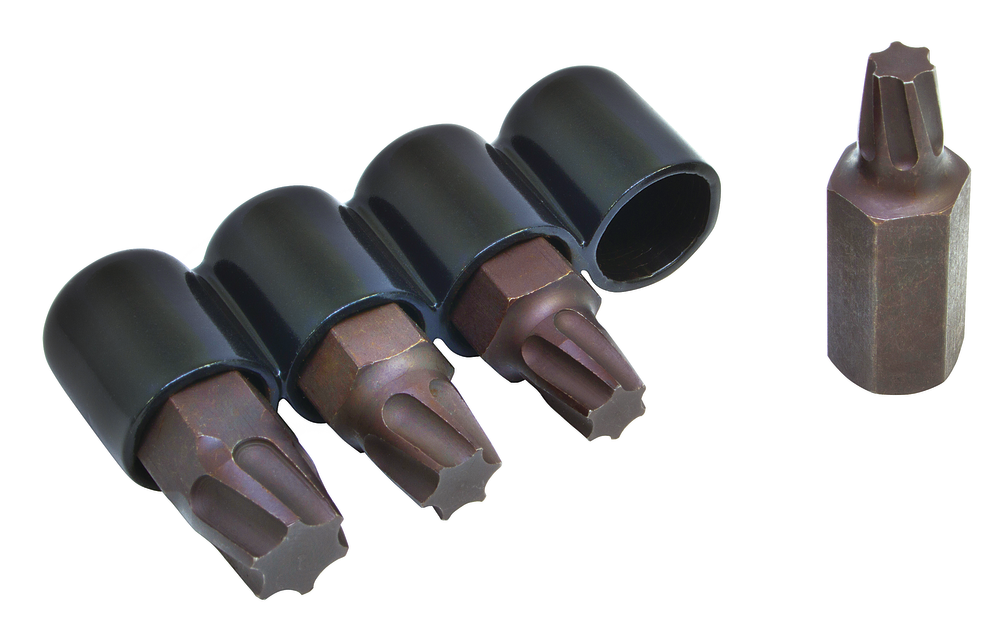

The Lisle Corp. 4-pc Stripped Screw Extractor Set, No. 62110, includes six lobed spiral bits which are designed to remove rounded or stripped fasteners with internal drive heads. Four sizes of extractors fit Torx and Torx Plus sizes T-40 to T-55; internal hex sizes 1/4" to 1/2" and 6mm to 13mm. This set will also work on other stripped or rounded internal drive screw heads. Made of heat-treated alloy steel for durability.

Features and benefits

This tool will remove all stripped and rounded out Torx and internal drive screw heads.

Four sizes of extractors fit Torx and Torx Plus sizes T-40 to T-55; internal hex sizes 1/4" to 1/2" and 6mm to 13mm. Will also work on other stripped or rounded internal drive screw heads.

The stripped screw extractor removes internal fasteners that have been stripped or rounded out. There is no need to pre drill to remove fasteners, which save the technician time.

Selling points

Eliminates pre-drilling a hole into the fasteners before it can be extracted.
Constructed of heat-treated alloy steel.
Shipped on a skin pack card.

Specs

#7 extractor will fit a Torx or Torx Plus -40 and a 1/4” (6mm) Hex
#8 extractor will fit a Torx or Torx Plus -45 and a 5/16” (8mm) Hex
#9 extractor will fit a Torx or Torx Plus -50 and a 3/8” (10mm) Hex
#10 extractor will fit a Torx or Torx Plus -55 and a 1/2" (13mm) Hex.

General use

Choose the extractor that fits snugly in the fastener. Turn counter-clockwise to remove fastener. It may be necessary in some applications to drive the extractor into the fastener with a hammer for maximum engagement.
