Look for Suzuki Shift Damage

June 24, 2023
The gear shift lever rear shaft assembly on manual transmission equipped 2009-2013 Suzuki Grand Vitara vehicles can come apart resulting in an inoperative shifter.

The gear shift lever rear shaft assembly on manual transmission equipped 2009-2013 Suzuki Grand Vitara vehicles can come apart resulting in an inoperative shifter.

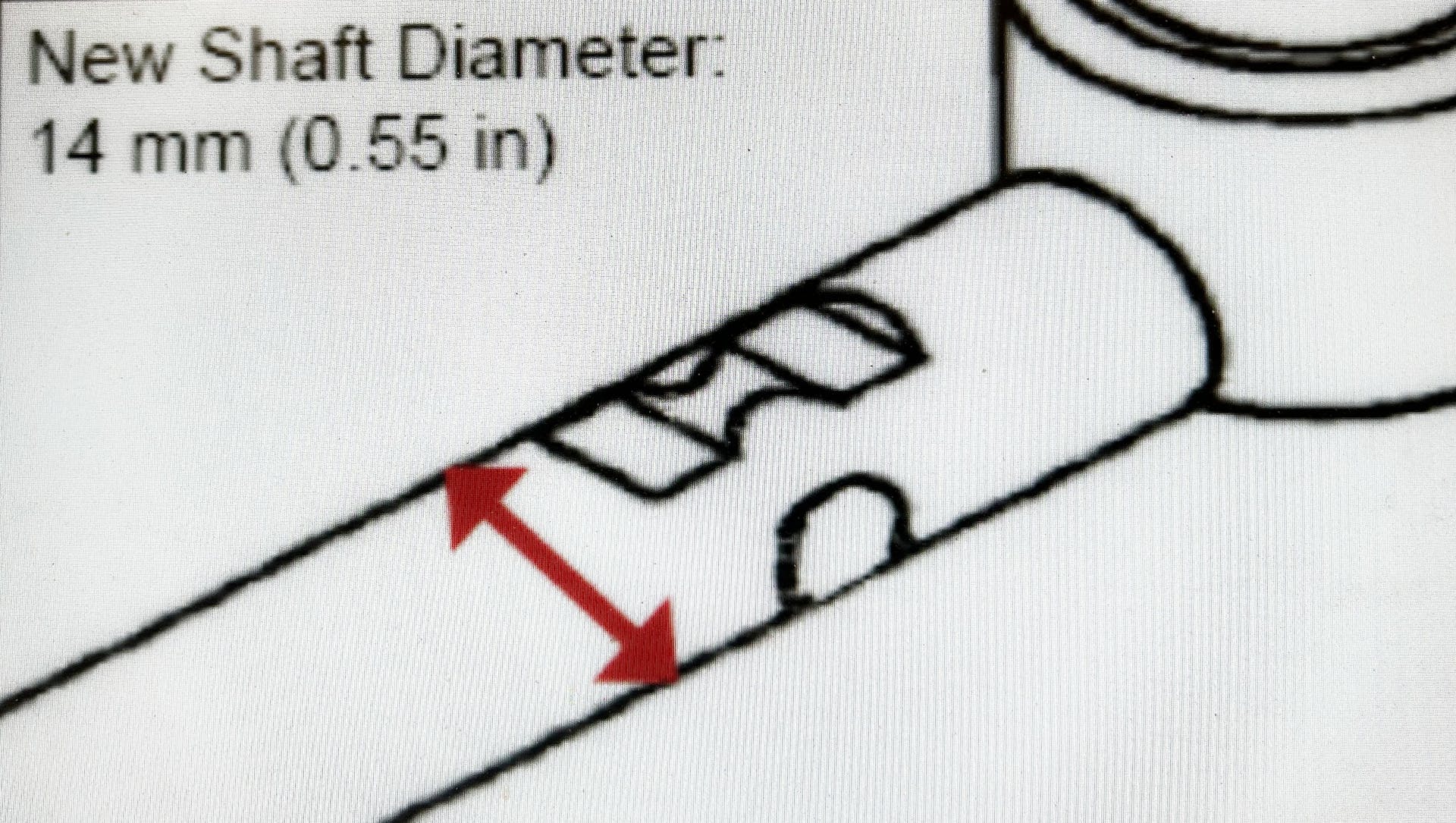

Applying excessive force to the shift lever can cause this damage. The rear shift shaft assembly has been redesigned. The new shaft is larger in diameter and the shaft’s control joint assembly uses a stronger press fit to hold the assembly together. The early shaft assembly is no longer available. The early shaft assembly is P/N 28101-78K01. The new upgraded assembly is P/N 28104-78K03.

About the Author

Information courtesy of Mitchell 1

Information for Technical Service Bulletins comes from ProDemand, Mitchell 1's auto repair information software for domestic and import vehicles. Headquartered in San Diego, Mitchell 1 has provided quality repair information solutions to the automotive industry since 1918.
