Suburban Connector May Be Corroded

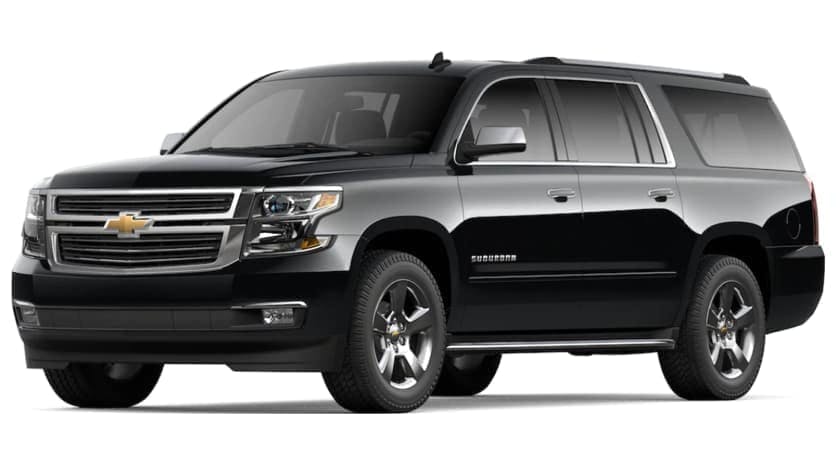

This bulletin applies to 2015-2020 Chevy Suburban vehicles. Any of the following DTCs may be set: P0010, P0011, P250A, P0300, P0327, P0328, P0330, P0335, P0336, P0340, P0341, P0532, P0533, P0641, P06B6, P06B7, P06DA, P06DB, P06DC, P2088, P2089 and/or P2230.

This bulletin applies to 2015-2020 Chevy Suburban vehicles. Any of the following DTCs may be set: P0010, P0011, P250A, P0300, P0327, P0328, P0330, P0335, P0336, P0340, P0341, P0532, P0533, P0641, P06B6, P06B7, P06DA, P06DB, P06DC, P2088, P2089 and/or P2230.

Note: P0340 and P0341 are camshaft position codes).

If normal diagnostics do not isolate the concern, inspect the corrosion in connector X154 or X159 (2015 only) located on the front cover next to the vacuum pump. Repair as needed.

About the Author

Information courtesy of Mitchell 1

Information for Technical Service Bulletins comes from ProDemand, Mitchell 1's auto repair information software for domestic and import vehicles. Headquartered in San Diego, Mitchell 1 has provided quality repair information solutions to the automotive industry since 1918.
