Kia IBAU Variant Coding

When replacing the integrated brake actuation unit (IBAU) on a 2014-2016 Kia Optima Hybrid LX, it is necessary to perform variant coding of the new module.

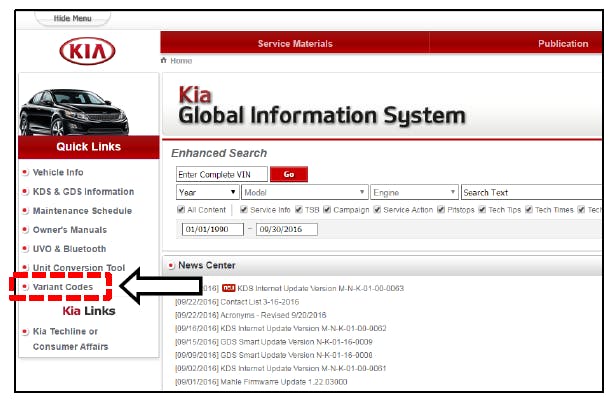

For additional information relating to variant coding, click the Variant Codes link on the KGIS home page. Go to the Software Management tab on the GDS/KDS and select the ABS/ESC system.

2014-2016 Optima:

P/N   58500 4U600, 58500 4U700, 58500 4U701...............Variant code 2202
