Backwards Toyota: wire harness connector from ECU to ASV swapped

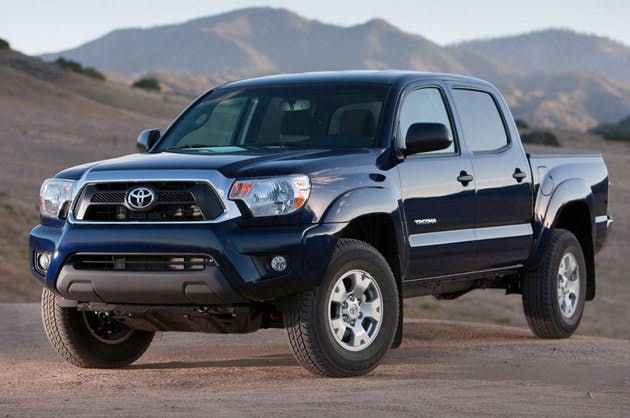

This bulletin provides diagnostic information for 2012 Toyota Tacoma vehicles equipped with the 1GR-FE 4.0L engine, regarding the secondary air injection system’s air switching valve (ASV). Certain vehicles have an incorrectly configured main engine harness.

 This bulletin applies to Tacoma vehicles produced before the production change effective VINs shown here.

 PLANT     DRIVETRAIN       CAB TYPE     BED                 PROD. CHANGE VIN

TMMTX…..2WD……….….....extra cab….….regular………...5TFTU4CN#CX001514

TMMX……Prerunner……….extra cab…….regular……....…5TFTU4GN#CX027912

TMMX……Prerunner……….double cab…..regular……..….5TFJU4GN#CX027732

TMMX……Prerunner……….double cab…..long………..…..5TFKU4HN#CX002867

TMMX……4WD…………..…extra cab….…regular……...….5TFUU4EN#CX047507

TMMX……4WD………….…double cab.…..regular…….......5TFLU4EN#CX047284

TMMX……4WD………….…double cab…...long………........5TFMU4FN#CX009450

TMMBC…..4WD……………double cab…...regular….....…..3TMMU4FN#CM049073

TMMBC…..2WD……………double cab…...short……….…..3TMJU4GN#CM137898

TMMBC…..4WD……………double cab..….short…..…….....3TMLU4EN#CM102244

TMMBC…..2WD……...….…double cab..….regular…….…...3TMKU4HN#CM033866

Diagnostic procedure

Diagnose the opposite bank of the secondary air injection system’s air switching valve (ASV) from that indicated by the DTC, as the wire harness connector from the ECU to the ASV was swapped between Bank 1 and Bank 2. When you see a DTC displayed, use a different DTC (the opposite bank DTC) for the diagnosis as shown below.

 DTC DISPLAYED                 DTC TO USE FOR DIAGNOSIS

P2431…………………………..P2436

P2432…………………………..P2437

P2433…………………………..P2438

P2440…………………………..P2442

P2441…………………………..P2443

P2444…………………………..P2445

P2436…………………………..P2431

P2437…………………………..P2432

P2438…………………………..P2433

P2442…………………………..P2440

P2443…………………………..P2441

P2445…………………………..P2444

P0412…………………….P0412 (Inspect Bank 2 ASV)
