Funky Mazda ABS

Owners of 2008-2010 Mazda CX-9 vehicles (built before Jan. 8, 2010) may experience a metallic crunching/shudder when attempting a left or right turn with slight road incline/decline at slow speeds (less than 9 mph).

1. Verify the concern.

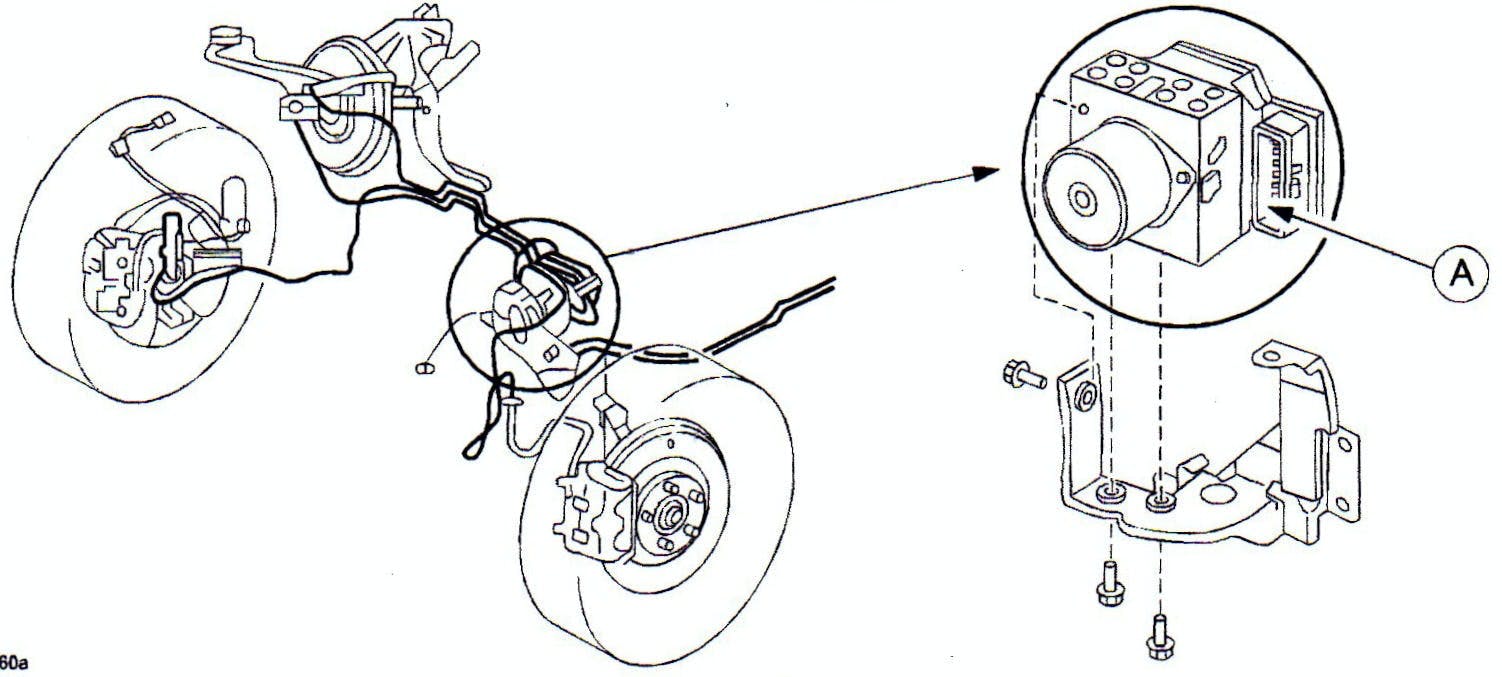

2. Replace the ABS/DSC hydraulic unit. Refer to MS3 on line or workshop manual section 04-18 DSC/RSC HU/CM REMOVAL/INSTALLATION for the replacement procedure.

MODEL YEAR    P/N                        DESCRIPTION

2008-2009………TD74-43-7A0D………Hydraulic unit – ABS

2010……………..TE69-43-7A0A………Hydraulic unit – ABS
