Where’s the Steering Angle Sensor?

Feb. 9, 2018
Some VW Golf, Jetta and Passat vehicles equipped with electromechanical power steering have the G85 steering angle sensor located in the steering rack.

Some VW Golf, Jetta and Passat vehicles equipped with electromechanical power steering have the G85 steering angle sensor located in the steering rack.

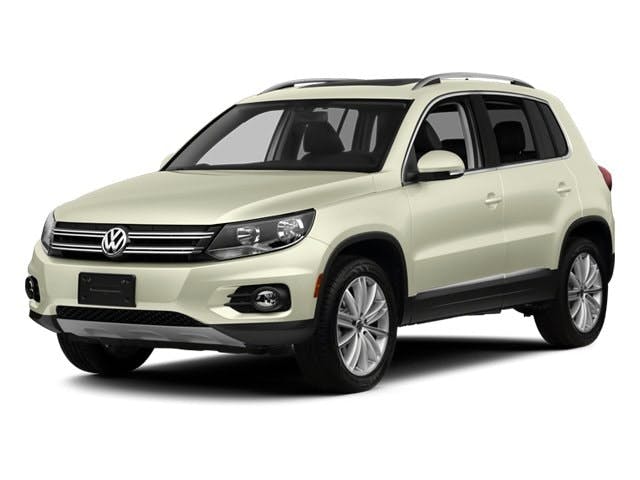

These vehicles do not have a G85 in the steering column. To determine G85 location, check the J500 power steering control module part number in the GFF printout. Do not use the part number on the steering rack for this check. All Rabbit, Tiguan and CC vehicles, as well as all 2009-2010 Passat vehicles, have the G85 located in the steering column.

If the steering rack has not been replaced, adaptation channel 9 in the address word 44-Steering assistance can be used to tell which system is featured in the vehicle. If there is a channel 9, there is a G85 in the rack. If adaptation channel 9 shows “channel not present,” the G85 is located in the steering column.

If the vehicle was originally built with a steering rack that has a G85, adaptation channel 9 should be set to 0 (ON). If a steering rack that has a G85 is installed into a vehicle that was built with a G85 in the steering column, adaptation channel 9 should be set to 1 (OFF). Incorrect adaptation channel 9 setting can cause faults in AW 19 Diagnostic interface for databus (gateway) and/or AW 03 Brake electronics.

Steering control module part numbers that start with 1K1 such as Rabbit part number 1K1 909 144 M do not have the G85 in the rack. Part numbers that start with 1K0 such as Jetta part number 1K0 909 144 C do have the G85 in the rack. Part numbers that start with 5N0 or 5N1 such as Tiguan part number 5N1 909 144 J do not have the G85 in the rack.
