Mazda park confirmation/no-start

Nov. 27, 2012
On some 2004-2011 Mazda3 vehicles equipped with an automatic transmission, the shift position lamp in the instrument cluster does not illuminate in the P position, and the engine does not start.

On some 2004-2011 Mazda3 vehicles equipped with an automatic transmission, the shift position lamp in the instrument cluster does not illuminate in the P position, and the engine does not start.

However, the engine can be started in the N position.

This is due to rust on the connecting point of the shift cable and lock cable lever, causing the select lever not to move to the location where it is recognized as P range. There is no issue about the transmission reaching Park. This is only an issue about the confirming P indicator in the instrument cluster.

A slit on the mudguard has been removed to prevent salt water from reaching the location where rust would occur.

1. Verify the concern.

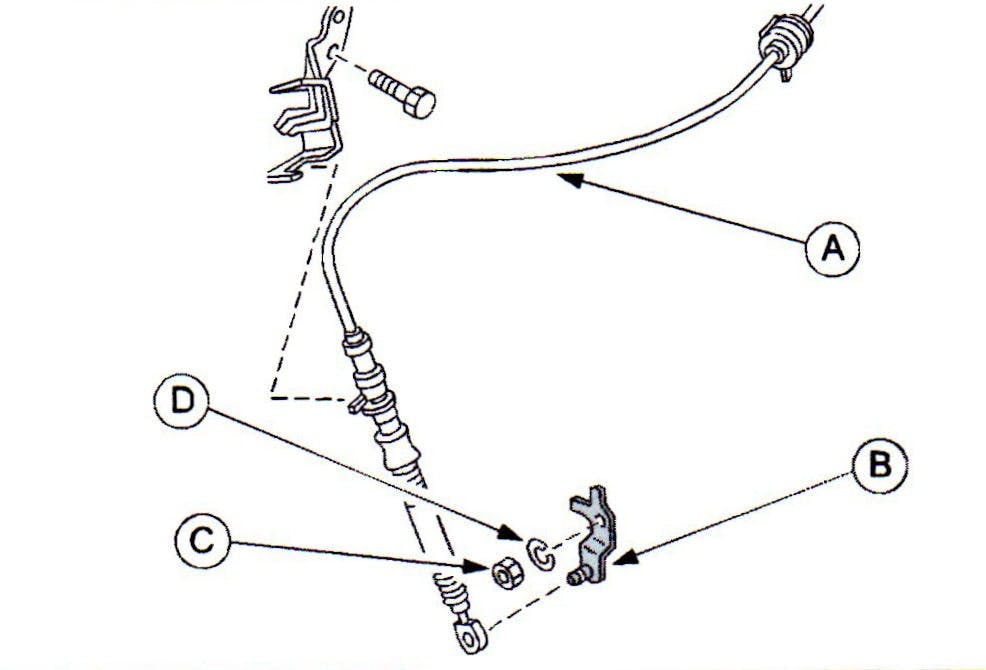

2. Verify that rust appears on the connecting point of the shift cable and lock cable lever, then replace the lock cable lever with a new lever by removing the nut and washer. During reassembly, also replace the nut and washer.

NOTE: When removing or installing the lock nut, always be sure to hold the lock cable lever with an adjustable wrench. Failure to use an adjustable wrench may cause the TR switch to break.

If corrosion is present, apply penetrating oil to the shaft and nut threads before loosening. When loosening, if there is binding due to corrosion on the threads, work the nut back and forth until it comes off.

PARTS

B2YE-46-310…………………..Lock cable lever

9992-21-400……………………Nut

9997-11-400……………………Washer
