Hyundai A/C coil update

March 5, 2013
For the models in the applicable list below, this TSB provides an additional A/C compressor field coil specification that may not be available in the shop manual.

For the models in the applicable list below, this TSB provides an additional A/C compressor field coil specification that may not be available in the shop manual.

APPLICABLE MODELS

2000-current Accent

2001-current Elantra

2003-2008 Tiburon

2010-current Genesis Coupe

1999-2010 Sonata

2001-2005 XG300/XG350

2006-2012 Azera

2005-current Tucson

2001-2012 Santa Fe

2007-2012 Veracruz

2007-2008 Entourage

PART SPECIFICATION

-          Field coil resistance is 3 to 4 ohms.

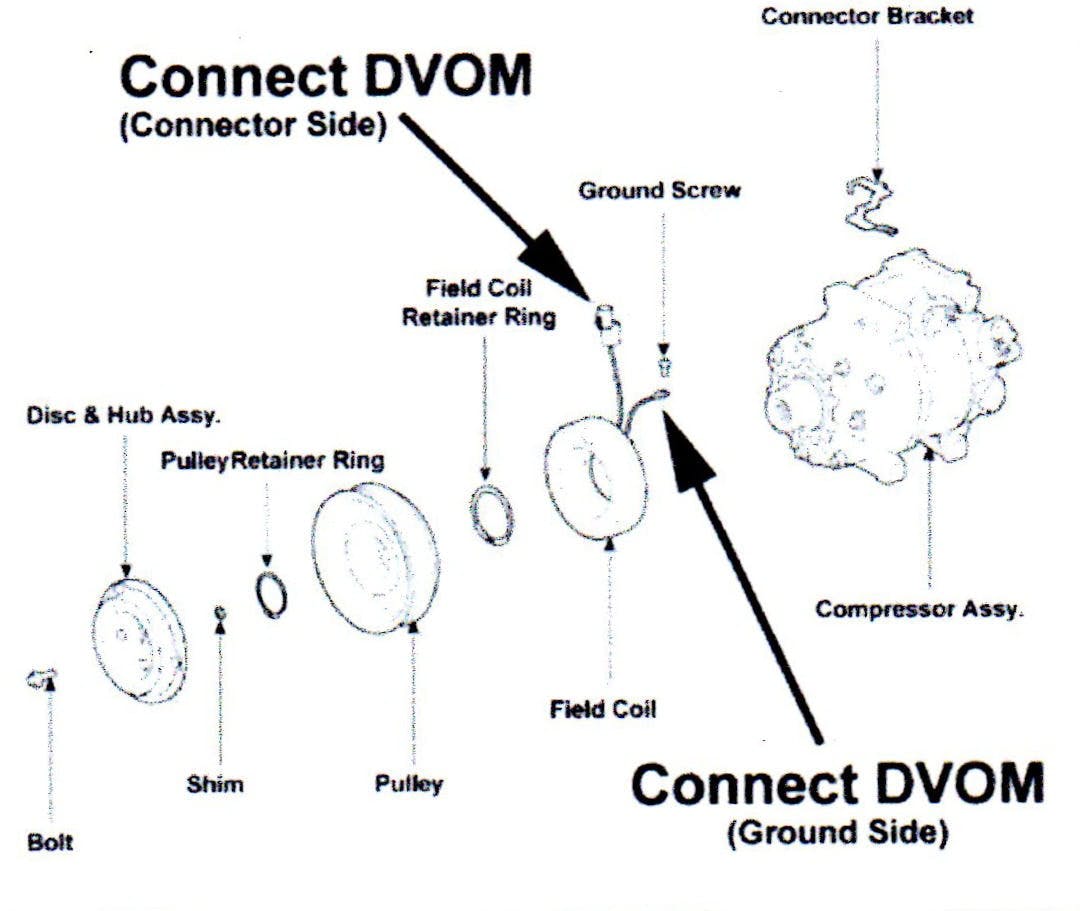

-          Measure between field coil connector and compressor housing ground using DVOM.

-          If the field coil is out of specification, replace it following the applicable shop manual procedure.

Some newer models (not listed here) may be equipped with A/C compressors that do not use a field coil due to a clutchless design. For these models, the field coil resistance inspection procedure is not applicable.
