Ragtop operation

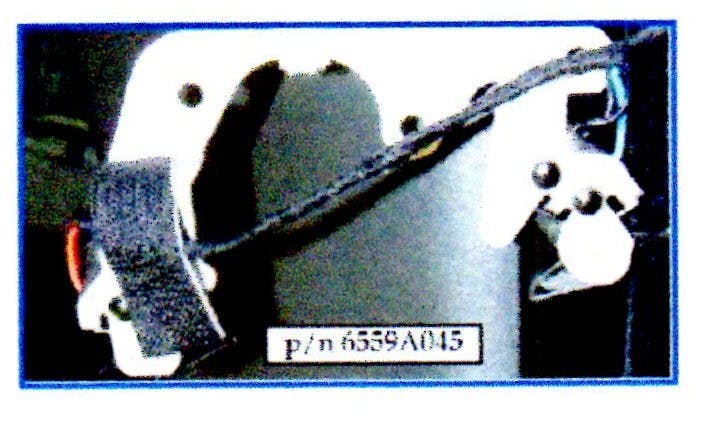

When diagnosing DTC B1304 on 2007 and later Mitsubishi Eclipse Spyder vehicles, the convertible top position switch assembly is located at the driver’s side rotary actuator.

The “up” and “down” switches are attached to a common bracket and are not available separately. If you determine that switch replacement is necessary, and are having trouble finding it in ASA CAPS, order P/N 6559A045 “Bracket, Folding Top RR.”
