Shaky Suzuki Equator

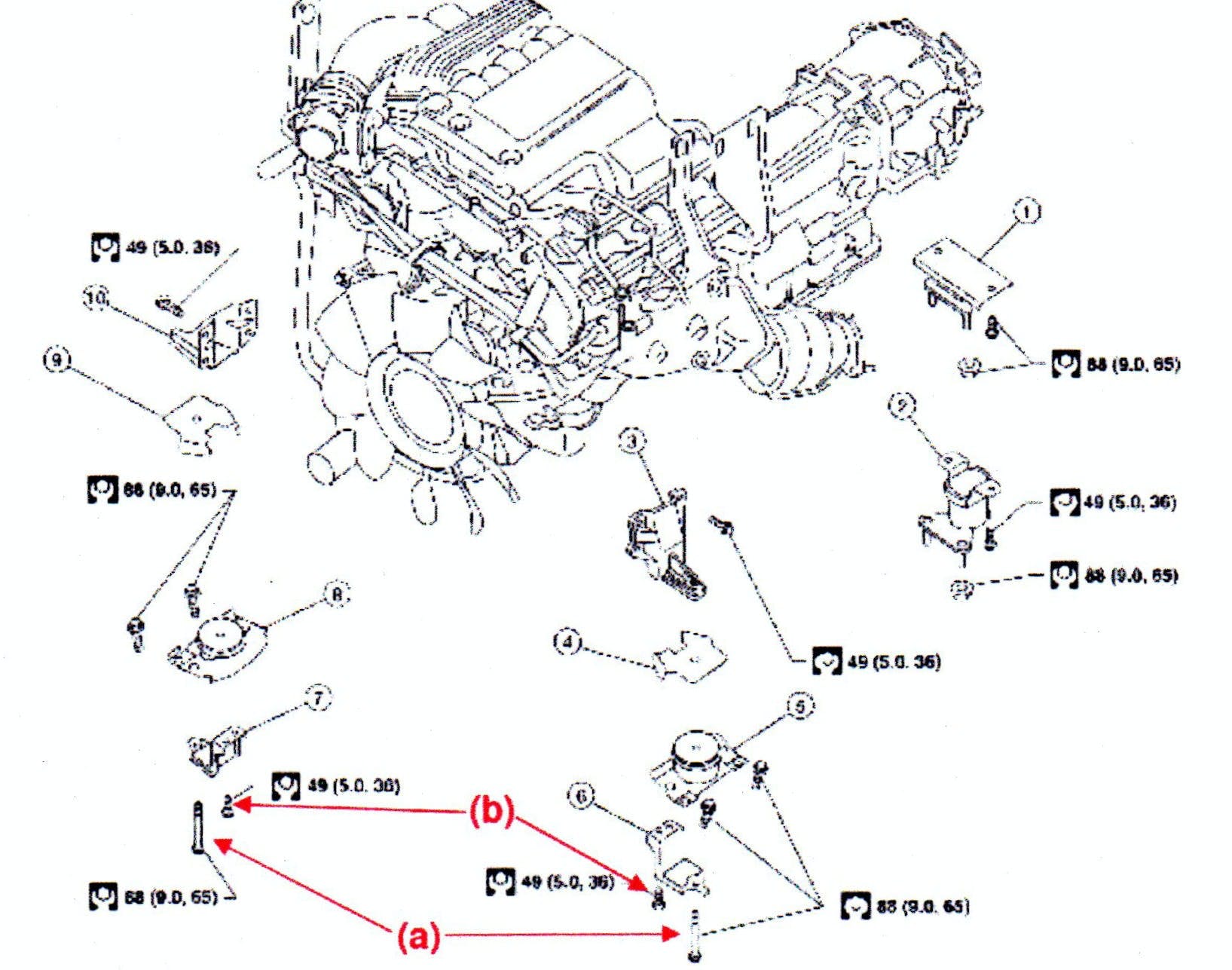

A front engine mount vibration/noise may be noticed on 2009-2011 Suzuki Equator vehicles. If this condition arises, it’s due to a leaking or cracked front engine mount insulator. The fix involves replacing both front engine mounts, stoppers and bolts.
PARTS INFORMATION
P/NÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â ITEMÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â QTYÂ Â
11510-82Z10….engine front mount…....…………2
11516-82Z20….stopper, engine front mount……2
11513-82Z40…….bolt………….............…………..2 (torque to 65 ft.-lbs.)
11513-82Z00…….bolt……………………......…….4 (torque to 36 ft.-lbs.)
