Missing Toyota alignment pins

Nov. 5, 2012
During engine/transmission service on all 1990-2009 Toyota engines, alignment pins may be missing, resulting in incorrect alignment and failure of the transmission/transaxle assembly.

During engine/transmission service on all 1990-2009 Toyota engines, alignment pins may be missing, resulting in incorrect alignment and failure of the transmission/transaxle assembly.

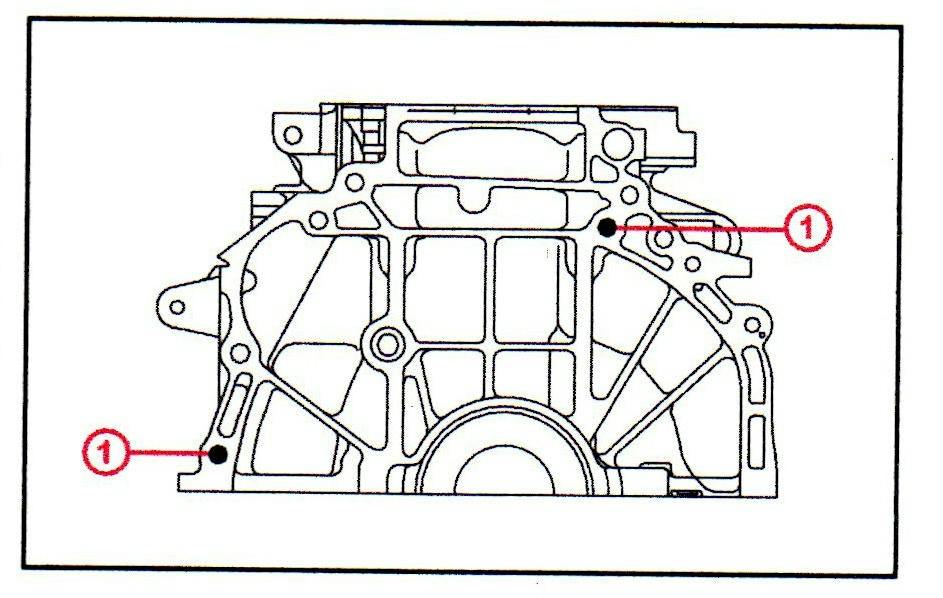

Inspect the rear of the engine block for two alignment pins. If there are less than two alignment pins present, one may have been removed with the transmission/transaxle assembly.

Replacement pins are available as P/N 90250-10113.
