Recalibrate and complete the job: SRS accuracy and IMU calibration

Supplemental restraint systems (SRS) have been a standard safety feature on vehicles in the United States since the 1998-1999 model years, when dual front airbags became mandatory across passenger vehicles and light trucks. Designed to work alongside seat belts, these systems are engineered to reduce injury by managing the forces placed on occupants during a collision.

Modern SRS protect occupants across three stages of impact:

1. Vehicle impact with an external object
2. Occupant movement within the passenge compartment
3. Internal forces within the body

To reduce injury, manufacturers have introduced a range of safety components including:

• Front, side, curtain, and knee airbags
• Seat-mounted anti-submarine systems
• Pyrotechnic seat bet pretensioners

Today’s systems rely on precise sensor input and rapid decision-making to deploy correctly within milliseconds.

How modern SRS systems work

Modern SRS operate as a coordinated network of sensors, control modules and deployment devices, all working together to determine when and how occupant protection systems should activate.

At the center of the system is the airbag control module (ACM), which continuously monitors inputs from:

• Crash sensors measuring deceleration and impact severity
• Side impact sensors for lateral collisions
• Occupant detection systems (ODS) that monitor seat occupancy, weight and position
• Inertial measurement unit (IMU / yaw sensor) measuring vehicle acceleration, rotation and orientation

Using this data, the control module determines:

• Whether a collision meets deployment thresholds
• Which airbags and pretensioners should activate
• How much force should be applied

Modern systems go beyond simple deployment. Features such as dual-stage airbags and occupant detection allow deployment strategies to adjust based on crash severity and occupant position.

Side impact protection systems (SIPS) integrate side airbags and sensors to provide targeted protection during lateral collisions, further increasing system complexity and reliance on accurate sensor data.

Key supporting systems

In addition to airbags and sensors, modern SRS include supporting components that directly affect diagnostics and repair outcomes:

Seat belt pretensioners use pyrotechnic devices to tighten seat belts instantly, ensuring occupants are correctly positioned before airbag deployment.

Pyrotechnic battery disconnects (pyro fuses) isolate electrical power during a collision to reduce fire risk. After deployment, this can result in a no-start condition, which may be misdiagnosed as a battery, starter, or wiring fault.

Shorting connectors (shorting rings) are integrated into airbag circuits to prevent accidental deployment when disconnected.

Improper reconnection or damage can result in:

• High-resistance faults
• Intermittent SRS warnings
• Persistent DTCs

Why sensor accuracy is critical

All SRS decisions are based on accurate sensor data and reference points.

The inertial measurement unti (IMU) plays a key role by measuring vehicle motion across multiple axes, allowing the system to determine:

• Impact direction
• Rotation and rollover conditions
• Acceleration and deceleration forces

This sensor provides a reference point for the entire system.

If that reference changes, even slightly, the system's ability to correctly interpret a collision is affected.

Why calibration is required

If the airbag control module or IMU is:

• Removed
• Replaced
• Unbolted or repositioned

The original reference point is lost.

Without recalibration

• Sensor data may be inacacurate
• Deployment logic may be compromised
• The system cannot confirm correct operation

Recalibration restores this reference point.

The real-world diagnostic challenge

SRS are often approached as component replacement repairs, especially following collision.

In many cases:

• Components are correctly replaced
• Codes are cleared
• The vehicle is ready to return to the customer

However, technicians may encounter:

• Persistent SRS warning lights
• Incomplete system initialization
• Post-repair faults despite correct parts replacement

This typically occurs when calibration requirements are overlooked.

Yet the SRS warning light remains active or the system is not fully operational.

Technician thinking and common pitfalls

A common technician assumption is: “If the module is reinstalled and no components are damaged; no further action is needed.”

In reality:

• The system depends on precise sensor positioning
• Even small changes in module orientation affect system accuracy

Common mistakes:

• Clearing codes without recalibration
• Assuming calibration is only needed after major collisions
• Overlooking calibration after minor repairs or module removal

If the control module or IMU is moved or unbolted, recalibration is required.

The Diagnostic Approach

A structured workflow prevents misdiagnosis and comebacks:

1. Verify customer concern and warning indicators
2. Perform a full pre-scan
3. Identify SRS-related DTCs
4. Confirm whether:
   1. The vehicle has been in a collision
   2. Components have been replaced
   3. The SRS module has been disturbed
5. Complete required repairs
6. Perform IMU calibration using special functions
7. Verify system operation and clear codes

Additional Post-Collision Diagnostic Considerations

No-Start After a Collision

If a vehicle will not start after an impact:

• Check for pyrotechnic battery disconnect activation
• Inspect power distribution circuits
• This is commonly mistaken for a mechanical or electrical fault when itI is actually part of the SRS safety strategy.

SRS circuit faults after repair

If faults persist:

• Inspect airbag connectors for shorting ring integrity
• Verify connectors are fully seated
• Check for pin damage or resistance issues

These issues can trigger:

• SRS warning lamps
• Communication faults
• Intermittent issues

NEW FUNCTIONALITY

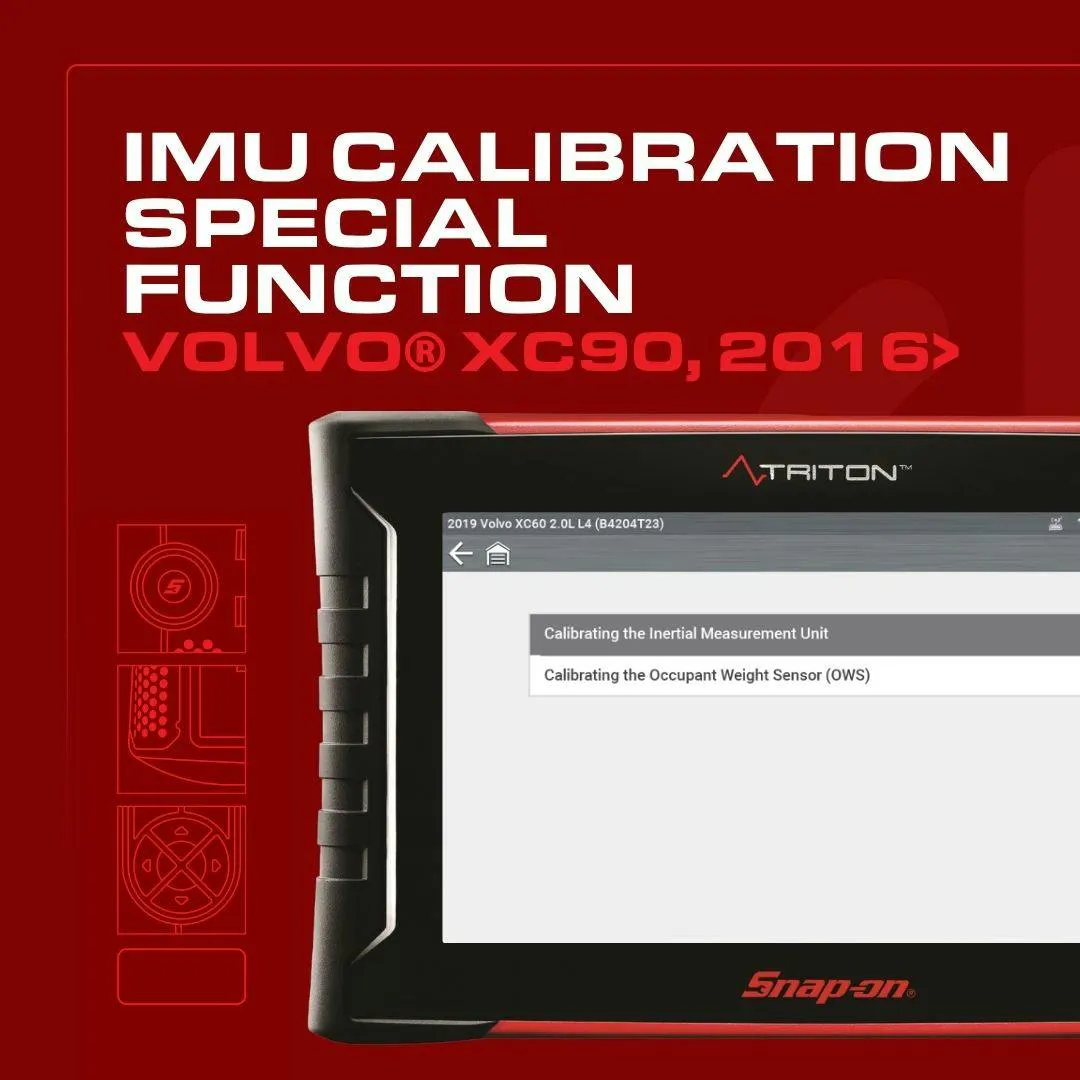

Volvo XC90 (2016>) inertial measurement unit (IMU) calibration - special function

Why this functionality is essential

SRS are critical safety systems, not convenience features.

The addition of IMU calibration functionality allows technicians to:

• Complete repairs fully and accurately
• Ensure the system is operating as designed
• Avoid unnecessary component replacement
• Eliminate repeat visits and unresolved warning lights

Without calibration:

• The SRS may not operate correctly
• Warning lights remain active
• Diagnostic work remains incomplete

This is not a diagnostic shortcut; it is a required step to complete the job correctly.

Conclusion

Modern supplemental restraint systems rely on precise sensor data and accurate system calibration to function correctly. While component replacement is essential, it is only part of the repair process.

By adding IMU calibration capability to Snap-on diagnostic software, technicians can ensure SRS repairs are complete, systems are fully operational and vehicles are returned safely to customers.
