Solving a misfire mystery on a high-mileage Ford Transit

March 8, 2024
With today’s GDI platforms, the curtain of air/fuel that surrounds the spark plug electrode is more crucial than ever before.

Welcome back to another edition of “The data doesn’t lie,” a regular feature in which I pose a puzzling case study, and provide the answers to the previous issue’s puzzle.

I recently had a technical support call from a technician challenged with a misfire. The vehicle was a 2015 Ford Transit with a 3.5L V6 engine and a gasoline direct-injected fueling system, along with 260,000 miles on the odometer. At that mileage, just about anything is possible as a root cause fault.

The initial approach was taken to determine that cylinder No. 6 was the offending cylinder and that the misfire only occurred under heavy engine loads above 65%. I can hugely appreciate the steps taken to determine this. Many technicians do not take the analysis any further than determining which cylinder is misfiring. They frequently discount or even omit the engine operating conditions in which the misfire is occurring. That is a tremendous piece of the puzzle.

A relative compression test was then conducted, and the results took an engine mechanical fault off the list of potential causes within seconds. I love that!

Preliminary data

After my initial discussion with the technician, I inquired about the fuel trims (the corrective factor to the chosen injector dosage). According to the technician, the fuel trims were “normal.” I have been doing this a long time and the words “normal” or “good” make me smile. I truly need numbers to evaluate the performance of the vehicle and sub-systems like the GDI system and feedback loop.

I instructed the technician to re-evaluate the fuel trims under the misfiring conditions and get back to me with the results. Considering the nature of when the fault occurred, two potential faults were high on my list of suspects:

  1. Secondary ignition system fault
  2. Fuel injector system fault

Although the symptoms are similar from either potential fault, the difference between the two is drastic as how they reflect in fuel trim reaction. Upon revisiting the vehicle, the technician reported back to me with fuel trims exceeding 25% on bank No. 2 (where the suspect cylinder resides).

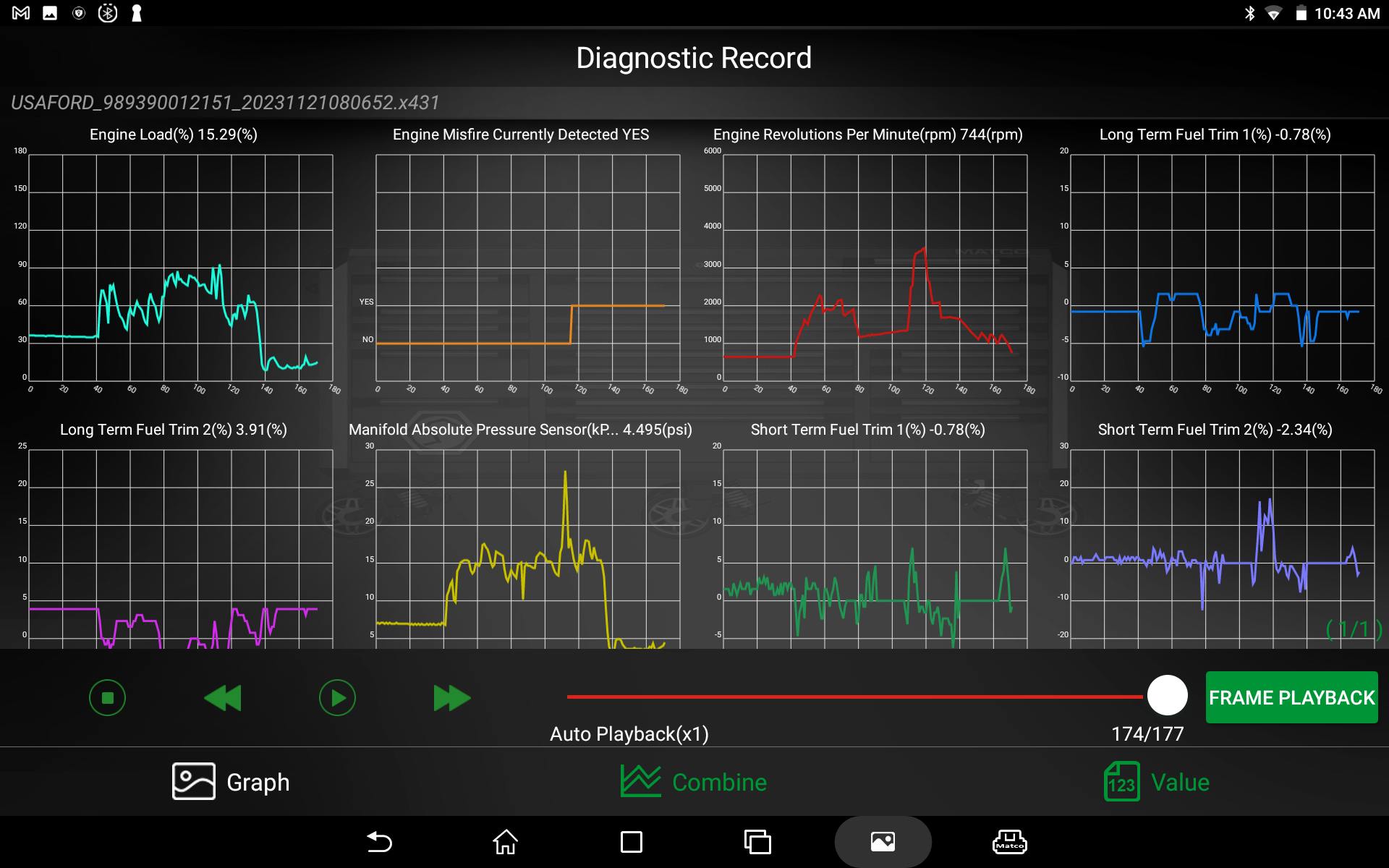

The abundance of oxygen from the misfiring cylinder provides evidence that the misfiring cylinder lacks fuel (Figure 1). This can be seen in the short-term fuel trim. The fact that only one cylinder is misfiring eliminated a lot of components and unnecessary testing of those components.

A stepping-stone has been provided

If you’ve been reading my articles for any length of time you realize my goal is not to “fix the vehicle” but instead to determine what “isn’t broken.” This systematic process of elimination prevents me from wasting time unnecessarily.

I use the preliminary data above to guide me toward the next logical test. In this case, we must focus on the fuel injection system. Particularly, the No. 6 fuel injector's functionality and related circuitry. I instructed the technician to perform a fuel injector balance test.

Now, I will caution you that the injector balance test (specifically regarding a GDI platform) is great at revealing an injector delivery volume issue (a heavy restriction or electrical circuit fault). However, the misfire can be caused by a spray pattern issue which may not be easily reflected in the results of that injector balance test. In other words:

A failed balance test reveals a fault conclusively. A passing test does not prove the system is functioning correctly.

The results of the test left us hanging and offered no conclusive proof of failure (Figure 2). However, we are not dead in the water yet. There is a much more conclusive test I like to perform when I suspect a fuel injector issue and the vehicle is equipped with a wide-band air-fuel ratio sensor (WRAF).

I instructed the technician to use his scan tool to graph out the PID for “Lambda.” I describe this PID as being like the data that would be given from an exhaust gas analyzer in the tailpipe. I continued to instruct the technician to cancel the individual injector’s function with the bi-directional control of the scan tool.

The idea is that each injector (when deactivated) should cause the same change in the exhaust gas content. If any of the injectors’ performance is hindered, when canceled, the change in exhaust gas content will be different from the other properly functioning injectors.

To save space but prove the value in the test, here are the capture results of a known-good injector cancelation, in GREEN and one from the suspect cylinder, in RED (Figures 3 and 4). What you are seeing is the variation in air-fuel ratio change. It’s quite obvious that the injectors are not performing the same.

The data doesn’t lie  

With all the information in front of us, and the desired information not yet obtained, we are faced with deciding how to proceed. Here are some bullet points of what we know to be factual, and I will ask all of you, diligent readers, for your input:  

  • The No. 6 cylinder misfires under heavy load.
  • Preliminary data points to an injection system fault on bank No. 2.
  • Only one cylinder is affected.
  • Comparative captures show a variation in exhaust gas content change between cylinders.

Given this information, what would you do next?  

  1. Replace all six fuel injectors to be sure.
  2. Replace the No. 6 fuel injector only.
  3. Evaluate the performance of the injection circuit.
  4. Perform an injection system cleaning service.

SOLVED:(February 2024, Motor Age) 2007 Ford Edge, misfire under load

What would you recommend doing next, given the data bullet points in last month’s challenge?   

Given this information, what would you do next? 

  1. Replace all six ignition coils
  2. Replace the #2 ignition coil only
  3. Commit to intake removal and swapping coils for diagnostic purposes
  4. Obtain a common amperage waveform of all coils

For those of you who chose answer No. 4, congratulations. The amperage waveform is frequently one reflected upon to determine if/how the work is being performed. It will be clear to see if the ignition coil is not functioning properly but also determine if the circuit is functioning correctly.

Although swapping coils from one cylinder to the next is a valuable test, it is not realistic in this application as the suspect coil resides under the intake manifold which removal is required to perform this test.

Replacing all six coils is not a bad idea in this application as they are a quite common weak link in this vehicle’s ignition system and the failure rate is very high. However, that would be an expensive guess. It’s more professional to prove the fault rather than rely on “silver bullet” repair tactics.

Obtaining a common ignition coil waveform will be easy to perform, provide conclusive evidence of coil performance, and doesn’t require any disassembly. In this case, the coil was not performing correctly but had everything it needed to perform correctly (Figure 5). All coils residing under the intake manifold were replaced, including the suspect coil #2. The vehicle was free from misfires after the repair.

Be sure to read next month's column for the answer to this month’s challenge and what was discovered!
