Solved: A Jeep Cylinder Misfire

May 29, 2025

A Jeep Wrangler was experiencing intermittent misfires, and our go-to testing was only showing what was functioning properly, instead of indicating what was wrong.

Brandon Steckler

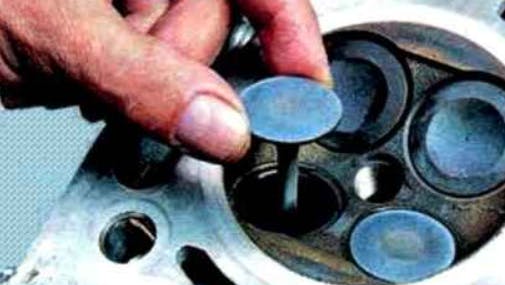

The cylinder head was removed, and the valve train was inspected. Cylinder No. 3 exhaust valve had excessive stem-to-guide clearance. This allowed the No. 3 exhaust valve to rock along the seat and created an intermittent sealing issue. The cylinder head requires reconditioning and/or replacement. These cylinder heads are a known issue so replacement is prudent.

A 2013 Jeep Wrangler was experiencing intermittent misfires. Test after test and the results showed us what was functioning correctly, but didn't seem to point to what was wrong.

We had a DTC for P0303 "Cylinder No. 3 misfire." The link will allow you to get reacquainted with the case details.

Given this information, what would you do next? 

Adjust the valve clearances
Replace the lifters only
Replace/recondition cylinder #3 exhaust valve
Replace/recondition cylinder #3 intake valve

For those of you who chose answer No. 3, congratulations! The relative compression test confirmed the suspect cylinder’s cause for misfire was of a mechanical nature. However, the other pressure waveform captures proved that during the loss of compression, the intake pressures did not increase, but in fact decreased. A leaking intake valve would not allow that to occur. This not only eliminated the intake valve as suspect but simultaneously condemned the exhaust valve for not sealing properly (See photo). Answer No. 4 is incorrect.

Although tight valve clearance can cause an issue like this, these valves were non-adjustable. That is determined by reading service information, so answer No. 1 is incorrect. Pumped-up lifers can cause valves to hang open but that characteristic would be visible in the pressure waveforms. Answer No. 2 is incorrect.
