Ford Powerstroke diesel: Engine background and tech tips

As anyone familiar with diesel engine operation knows, a diesel engine differs from other liquid fuel engines in one major respect: The fuel/air charge is ignited by cylinder pressure and heat, instead of via an electrical ignition system (diesel-fueled engines don’t use spark plugs).

On its downstroke, a piston draws air into the cylinder. On the compression stroke, the fuel injection system (depending on how it’s timed) spits fuel into the combustion area, and the resulting cylinder pressure (and residual heat from previous firings) combusts the fuel/air mix, etc.

Diesel heads generally don’t feature combustion chambers (flat decks with no chambers). Instead, the combustion chamber is afforded by the piston’s “bowl” cavity. Partly because of the serious cylinder pressures and forces exerted on the bottom end, diesel components (blocks, cranks, rods, pistons) are, for lack of a better term, heavy-duty and very beefy in construction. As compared to gas engines, just about everything on a diesel is bigger, heavier and more massive.

Ford Powerstroke

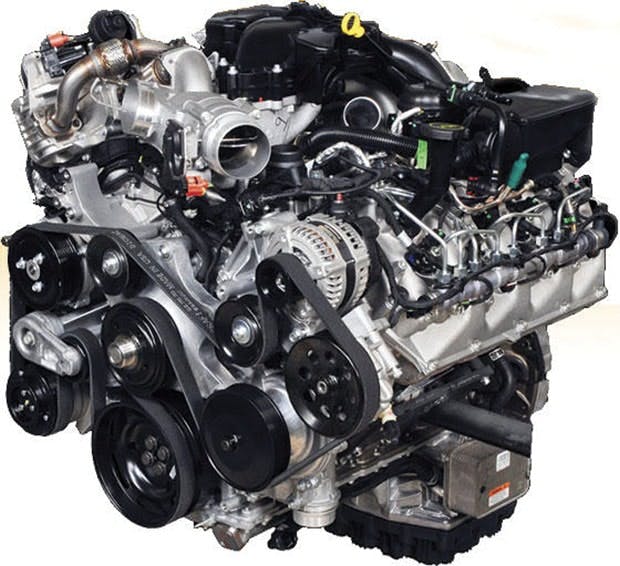

Ford’s Powerstroke diesel engine lineup includes a series of V8s. While the engines were built by International, Ford’s chosen name for their diesel engines is Powerstroke. The naturally aspirated International 6.9L/7.3L IDI (indirect injection), from 1982 to 1994 (the 6.9L ran from 1982-1987, and the 7.3L from 1987 to 1993. Starting with mid-1994, they switched to the turbocharged Navistar 7.3L, which was used until early 2003.

The Navistar 7.3 turbo engine was an outstanding engine platform. Then came the Navistar 6.0L turbo from 2003-2007. This was followed by the twin-turbo 6.4L from 2008-2010. The 2011 model features a Ford-built 6.7L single-turbo diesel. Cylinder heads are cast iron, except for the 6.7L, which features aluminum heads and a strong CGI (compacted graphite) block. Well over 2 million of the 7.3L engines remain in service today.

Powerstroke tech tips

SHORT IN INJECTOR

Some 2011-2012 F-Super Duty vehicles equipped with the 6.7L diesel engine may exhibit DTC P1291 and/or P1292 due to an internally shorted fuel injector. An internal short in an injector may be caused by fuel being contaminated with DEF (diesel exhaust fluid) or by fuel gelling.

Remove the fuel conditioning module mounted filter. Allow the filter and filter bowl to dry for at least two hours. If the filter turned white, this indicates that the fuel is contaminated by DEF.

In this case, the complete high pressure fuel system and diesel fuel control module (DFCM) needs to be replaced and the system flushed.

If the filter did not turn white, inspect the wiring harness for chafing near the EGR cooler. Repair the harness as needed. If no chafing is found, disconnect each fuel injector electrical connector for injectors 1, 4, 6 and 7 (for P1291). Disconnect injectors 2, 3, 5 and 8 for P1292.

Check for continuity between the injector electrical pins and the injector body. If continuity is present, replace the injector(s) and the injector(s) return hose.

PART       P/N
Injector return hose               BC3Z-9A564-A
Fuel injector (cyl 1, 2, 7, 8)   BC3Z-9H529-A
Fuel injector (cyl 3, 4, 5, 6)   BC3Z-9H529-B

[PAGEBREAK]

DEAD ENGINE = A REAL DANGER

This is a fairly common and critically severe glitch on Ford trucks equipped with the 7.3L Powerstroke diesel engines. Your customer is driving along, minding his own business, when WHAM... the engine simply shuts off, as though someone hit a master kill switch. No engine power, no power assist brakes, no power steering, no nothing (at least the lights still work). This is simply a very dangerous situation, especially if you’re in traffic or descending a hill, or (and I shudder to think about this) pulling a big trailer down a hill.

The likely cause? The fuel bowl heater circuit. The heating element inside the fuel bowl shorts out, killing fuse #30 (30 amp). Unfortunately, the same fuse powers the wastegate solenoid, injector driver and the PCM power diode. Some designer at Ford ran the fuel heater and the PCM on the same circuit. When the fuel bowl heater shorts out, it kills the engine in its tracks, without warning.

The ideal cure: Replace the fuel heater element and the 30 amp fuse. In practical terms, simply unplug the white two-wire connector at the rear of the fuel bowl and replace the fuse. Unless your customer is operating in sub-zero temps, he doesn’t need the fuel bowl heater anyway. This is a very dangerous scenario. Try stopping and steering a heavy and dead 2002 F-350 dually diesel crew cab truck with no steering or braking assist on a busy freeway. It happened to me once, and all I can say is that it’s not fun. The 7.3L Powerstroke is a great engine, but that wiring glitch is nothing to laugh at.

My advice: Unplug the fuel heater connector before it causes a problem.

In addition, regardless of whether or not the fuel bowl heating element shorted, a kill-engine occurrence (also fuse #30) might also be caused by the wiring bundle that is located over the left side valve cover. These wires may have been rubbing, resulting in a shorted wire. With the batteries disconnected, lift the wire bundle up away from the valve cover and look for rub marks and chafed wires and small arc spots on the valve cover. Repair any damaged wire(s) and thoroughly insulate the wire harness to prevent future shorts.

Fuse 30 provides power to the fuel heater/water in fuel sensor, the waste gate solenoid control and the PCM power diode. When diagnosing a no-start, first inspect the wiring near the fuel heater/water in fuel sensor and the waste gate solenoid control to see if there are any chafed or worn-through/bare wires. Unplug both the fuel bowl heater connector and the wastegate solenoid connector and replace the fuse. Connect the fuel bow heater. If the fuse blows, you’ll verify that the culprit was the fuel bowl heater circuit. If it does not blow, connect the wastegate solenoid connector. If the fuse blows, inspect that circuit. Once a component is unplugged and the fuse doesn’t blow, then that component is likely the cause of the short. If both components are unplugged and the PCM power diode has been removed and the fuse still blows, then you have a short in the wiring itself and the harness would need to be traced for any rubbed through wires or chafe marks, or replace the harness.

BUZZ BUZZ

Some 2011-2012 F-Super Duty 250-450 trucks equipped with the 6.7L Powerstroke engine may exhibit an underhood buzzing noise while the engine is running, and for up to 30 seconds after the engine is shut off. This may be due to the wastegate control valve vacuum harness causing the wastegate control valve to resonate.

With the buzzing noise present, disconnect the vacuum hoses from the wastegate control valve. If the buzzing stops, replace the wastegate control valve vacuum harness. This involves removing the throttle body, the air cleaner outlet pipe and the three wire harness retainers. This provides access to remove and replace the vacuum harness. The vacuum harness is available as P/N BC3Z-9D430-E.

DIESEL SURGE

Diesel engines (we’ll cite Ford’s 7.3L, 6.0L, etc., as examples) typically feature a dedicated high-pressure oil system that operates the fuel injectors. The high pressure side typically runs at about 500 psi at idle, 1,200 psi at about 3,300 rpm and about 3,600 psi under full-load acceleration.

[PAGEBREAK]

This system involves a high pressure oil pump and an IPR (injection pressure regulator). Sticking (or wear) problems with the high pressure control regulator can cause engine surging (most commonly noticeable at lower rpm and at idle), as well as intermittent engine shut-off during low speed braking and/or when approaching a final stop. If the engine cuts out during a stop, with the transmission placed in neutral or park, the engine fires up again, but dies again when approaching a final stop. Other symptoms can include intermittent difficult starting, a slight stumble when the accelerator pedal is nailed while the engine is turning around 1,000-1,500 rpm and/or annoyingly extended cold-cranking in freezing temperature. Granted, various injector issues could cause some of these problems, but if a customer’s truck enters the shop with the surging/intermittent shut-off issues, definitely inspect the high pressure oil system.

When these driveability problems began to appear, the “off-the-cuff” reaction was to replace the fuel filter, suspecting that it was moisture-contaminated. While it’s imperative to regularly replace diesel fuel filters anyway (especially in cold climates), if the first few filter changes don’t solve the glitch, suspect the high pressure oil control valve or regulator. The high pressure oil system runs at very high pressure, and any interruption in pressure flow will cause the PCM to attempt fuel enrichment changes.

NOTE: While it’s certainly easier to replace a sticking control valve, the high pressure control valve is usually rebuildable (basically just disassemble, clean and reassemble). Also be sure to check the high pressure oil rail and its connections for external leakage (which will not only make an oil mess at the rear of the intake manifold, but will cause pressure drops).

It’s also important to remind customers that only specified engine oil should be used in diesel applications, in part because of the special anti-foaming additives in the oils, critical for maintaining an adequate and constant pressure to the injectors to prevent aeration and sub-par injector spray patterns (these anti-foaming agents can break down in the 3,000- to 5,000-mile range). Citing the Ford examples, several oils are appropriate and should carry an API rating of CF-4/SH or CG-4/SH or higher. One example is Shell Rotella-T 15W40.

I SMELL SOMETHING

Some 2008 Super Duty vehicles equipped with the 6.4L Powerstroke engine may exhibit an exhaust odor inside the cabin and/or exhaust smoke may be visible from the front of the vehicle. Inspect the turbocharger to exhaust down pipe connection for a leak.

Remove the turbocharger oil supply tube banjo fitting bolts and copper sealing washers. Discard the old copper washers.
Remove the bolt and the turbocharger oil supply tubing and plug openings. Remove and discard the oil supply line gasket.
Remove the five bolts and the turbo heat shield.
Verify that the exhaust leak is coming from the turbo to exhaust down pipe connection by inspecting for exhaust soot around the connection.
Remove and discard the two exhaust down pipe to diesel oxidation catalyst (DOC) fasteners.
Hand-start new fasteners by a couple of turns.
Remove and discard the turbocharger to exhaust down pipe clamp and turbo to down pipe gasket.
Install a new gasket to the turbocharger.
Align the down pipe flange to the turbo flange.
Install a new clamp over the flanges and latch the clamps’s T-bolt.
While maintaining exhaust down pipe flange alignment to the turbo flange, tighten the clamp nut by approximately 1-inch.
Establish an 11/16-inch clearance between the exhaust down pipe to the frame, using a temporary piece of material such as wood. Place this temporary spacer between the frame and down pipe.
Confirm flange alignment and tighten the down pipe clamp to 11 ft.-lbs.
Torque the exhaust down pipe to diesel oxidation catalyst fasteners evenly to 30 ft.-lbs. Remove the temporary spacer from between the frame and down pipe.
Position the turbo heat shield and install the five bolts, tightening these to 8 ft.-lbs.
Install a new oil supply line gasket and apply clean engine oil. Position the turbo oil supply line tube and install the bolt, tightening to 10 ft.-lbs.
Install two new copper sealing washers and the oil supply tube banjo fittings on the turbo oil supply fittings. Tighten to 28 ft.-lbs. Verify that the oil supply tube does not contact the turbo actuator linkage.

CAUTION: Use only new banjo bolts that feature a green hex head. The green-headed bolts do not contain a check valve. When viewed from the inner end, the correct bolt design will appear open. Using incorrect banjo bolts may result in turbocharger damage.

P/N PART

W711407-S900 Down pipe to DOC fasteners (two needed)

7C3Z-5A231-AC Turbo to down pipe clamp

7C3Z-6L612-B Turbo to down pipe gasket

W302474 Oil supply line gasket (two needed)

BEEFING IT UP

If your customer expresses an interest in obtaining an increase in power and torque, the most immediate and easiest approach is to install a quality re-program kit. If he or she wants to go further, consider the bottom-end (rotating and reciprocating components). Your shop may or may not be willing or able to perform an engine rebuild to accommodate these upgrades, but following are a few tips.

[PAGEBREAK]

PISTONS

OE pistons are generally cast and feature a steel insert in the top ring groove to prevent ring pounding and microwelding. Aftermarket forged/CNC-finished slugs are readily available to accommodate higher cylinder pressures and heat, especially for applications that run super-high turbo boost and/or nitrous oxide injection (as but one example, Mahle refers to their design as a Ni resist insert). The Mahle DI (direct injection) piston is designed with a cooled ring carrier cooling duct formed by a steel plate. This sheet metal channel is welded directly to the ring carrier. Oil is circulated through the passage to assist in piston cooling.

This welded steel design places the cooling gallery closer to the top ring groove for better cooling of the piston crown and the top ring carrier. Having a steel inert in the top ring groove prevents the ring from pounding itself (and the ring groove) to death. In the aftermarket forged piston offerings, it’s too difficult to incorporate a steel insert, so the ring lands are hard anodized to aid in longevity. However, this should be considered race-only, and not really recommended for street use where the engine won’t be torn down, cleaned and inspected on a regular basis.

With forged pistons (since they’re CNC machined anyway), custom dome configurations are readily available, including valve notching when needed. To give you some idea of the “beefiness” aspect, piston wrist pins are healthy, to say the least. In terms of piston coatings, naturally, as with gas or alcohol applications, anti-friction skirt coating is always a good move (some slugs include this as standard while optional coating is always available).

It’s safe to assume that when you move to a forged piston, piston-to-wall clearance will need to increase. Ross Pistons noted that (naturally, depending on bore diameter), clearance with forged slugs will typically be in the 0.010-inch - 0.013-inch range. Always check with your piston manufacturer for their recommended wall clearance.

NOTE: The easiest (and least expensive) method of increasing diesel power in today’s light trucks is with the addition of a “re-program.” Basically, the performance programs out there all perform the same general task — they increase the amount of delivered fuel. The added program alters the signals generated by the onboard ECU to control injector timing, fuel pressure and fuel injector pulse duration.

However, all consumers are not well-informed, and the simple addition of some programs can cause damage if the truck owner doesn’t understand what’s happening, and if he doesn’t compliment the new program with increased air intake and a freer-flowing exhaust system. Depending on the program, when hammering the engine at WOT, exhaust gas temperature (EGT) can elevate to dangerous levels and can result in damage to the turbo, pistons, rings, rods, crank, and well, you get the picture. Simply adding more fuel (without a complimentary increase in air, any extra fuel will be unburned (telltale black smoke billowing out of the exhaust).

This raises EGT and, over enough time and abusive operation, will result in mechanical damage. If your customer intends to run a custom fuel control program, make sure that he consults with the program maker to understand the risks and to be advised regarding any additional performance mods that will safeguard the engine. A properly tuned control package from a reputable and knowledgeable manufacturer will provide a great boost in power while avoiding engine damage. And if the customer does over-extend himself and discovers the mechanical limits, then he’s a prime candidate in your shop for an upgrade that will better withstand the abuse (forged rods, forged pistons, billet cam, etc.).

CONNECTING RODS

OE rods may be forged or powdered metal (the Ford Powerstrokes, for instance, began using PM rods in late 1998 to 2003 7.3L engines). The cracked cap PM rods in the 7.3L Powerstroke have a tendency to fail if turbo boost is cranked up, or simply due to high mileage fatigue over time.

Generally speaking, OE rods are probably good for up to about 400-500 hp (depending on the brand and specific engine). Beyond that, it’s time to step up to some aftermarket forged rods using high tensile strength rod bolts (ARP or A-1, for example). Of course, if you plan to add some stroke, you’ll need length-specific aftermarket rods anyway. This isn’t rocket science. If you’re building for serious power, there’s no debate... just buy quality steel forged rods. Steel rod makers that offer diesel units include (but are not limited to) Carillo, Crower and others. ●

POWERSTROKE ENGINE GENERAL SPECIFICATIONS

FORD POWERSTROKE 7.3L (1994-1997)

DISP BORE/STROKE CR HP @ RPM TORQUE

7.3L 4.11/4.18 17.5:1 210 hp @ 3,000 425 ft.-lbs. @ 2,000

(1995 California models had slip shot injectors. In 1996 hp rose to 215 hp and 450 ft.-lbs. In 1997 and 1998, power increased to 225 hp. In 1998 all 7.3 engines had split shot injectors)

FORD POWERSTROKE 7.3L (1999-2000)
