In Focus: Flexzilla Pro Mini Impact Wrench Kit, No. AT8505FZ

This kit is designed for repairs that require the power of a big impact in a size that fits into tight spaces.

At8505 Fz Nonretail

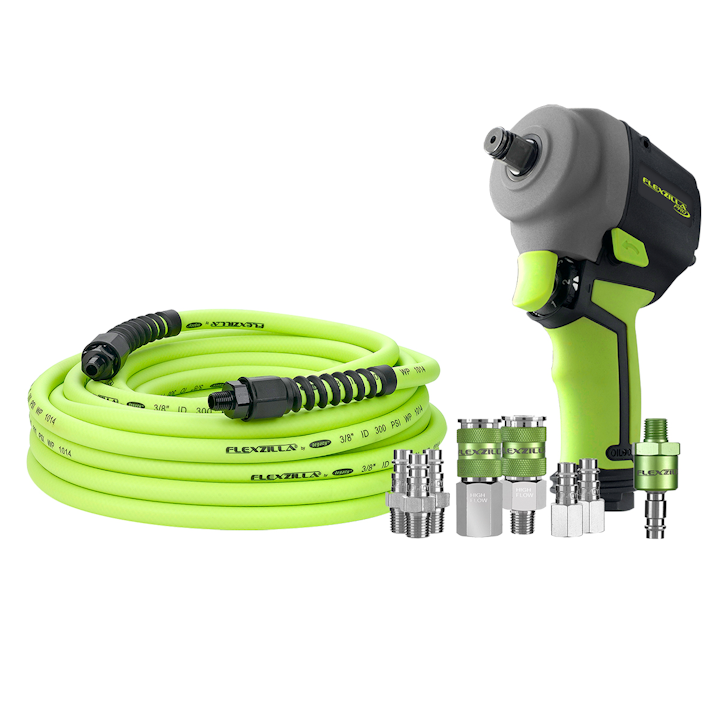

The Legacy Manufacturing Flexzilla Pro Mini Impact Wrench Kit, No. AT8505FZ, comes complete with the Flexzilla Pro Mini Impact Wrench, Flexzilla Pro High Flow Couplers and Plugs and a Flexzilla Pro Air Hose. The mini impact wrench has 800 ft-lbs of nut-busting breakaway torque and a lightweight design. The ergonomically designed air gun bodies built with pro-grade features, constructed of lightweight, but durable, aircraft-grade aluminum. A ported design delivers maximum airflow and the variable flow trigger gives users precise control. Using Flexzilla Pro Air Hose and High Flow fittings with twice the airflow of standard couplers and plugs, according to the company, gets users the most out of this air system.

Application

The Flexzilla Pro Mini Impact Wrench Kit is designed for repairs that require the power of a big impact in size that fits into tight spaces.

Selling points

  • Offers 800 ft-lbs of breakaway torque and is 4.4" long.
  • Kit includes everything needed to convert one bay from standard air flow to high flow with an impact gun.
  • Patented forward/reverse switch.
  • Compact, lightweight design.

Features and benefits

  • Torque selector with a maximum torque of 550 ft-lbs.
  • Handle exhaust directs air away from user
  • 1/4" NPT air inlet with built-in swivel
  • Ergonomic grip.
  • Offers 9500 rpm speed.
  • Hose is field repairable with reusable anodized aircraft aluminum fittings.
  • Extreme all-weather flexibility, even in subzero temperatures.

Origin

Flexzilla developed this mini impact wrench to provide high power in a compact package, with a kit that includes a high quality hose and fittings.

Manufacturing specs

This kit is made in Taiwan. The Flexzilla Pro Mini Impact Wrench features a 1/2" drive, 800 ft-lbs of breakaway torqu, 9,500 rpm, 4.8 CFM and a compact design ideal for tight spaces. The impact wrench weights 2.5 lbs, and the entire kit weighs 10 lbs. The kit includes the Pro Mini Impact Wrench, Flexzilla Pro Air Hose, 3/8" by 50' Flexzilla Pro High Flow Couplers and Plugs, 1/4" FNPT coupler, 1/4" MNPT coupler, two 1/4" FNPT plugs, 3 1/4" MNPT plugs and 1/4" MNPT Ball Swivel Plug.

Storage and display

This kit ships one kit per package.

Suggested retail price

$219
